Tutorial: A Solar System

A glowing sun, planets going round it at different speeds, a moon going round one of the planets, and a sky full of stars. The trick that makes orbits easy is the group: put a planet in a group at the sun, move the planet out along the group's arm, and turning the group swings the planet round the sun.

How an orbit works

sun (in the middle)
└── orbit group  ← turn this
    └── planet   ← placed 4 units out along x

The planet never moves by itself. Its group turns, and it is carried round, like a ball on the end of a stick. A moon is one more level: a group inside the planet's group, at the planet's position, with the moon out on its own arm.

The program

import math, random

renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)

scene = THREE.Scene()
scene.background = THREE.Color("black")
camera = THREE.PerspectiveCamera(55, width / height, 0.1, 500)
camera.position.set(0, 14, 24)
controls = addons.OrbitControls(camera, canvas)
controls.enableDamping = True

# --- the sun: glows by itself, and lights everything ---------------------
sun = THREE.Mesh(THREE.SphereGeometry(1.5, 48, 24), THREE.MeshBasicMaterial(color="gold"))
scene.add(sun)
scene.add(THREE.PointLight("white", 400, 0))     # a bulb at the sun's centre
scene.add(THREE.AmbientLight("white", 0.08))     # so night sides are not pure black

# --- planets ---------------------------------------------------------------
#          name      colour         size  distance  speed (turns a second)
planets_data = [
    ("Mercury", "darkgray",       0.25,  3.0,  0.40),
    ("Venus",   "navajowhite",    0.45,  4.5,  0.25),
    ("Earth",   "royalblue",      0.5,   6.5,  0.16),
    ("Mars",    "orangered",      0.35,  8.5,  0.11),
    ("Jupiter", "sandybrown",     1.1,  12.0,  0.05),
]

orbits = []     # (group, speed) pairs to turn each frame
earth = None

for name, colour, size, distance, speed in planets_data:
    orbit = THREE.Group()
    orbit.rotation.y = random.uniform(0, math.tau)      # start somewhere along the orbit
    scene.add(orbit)

    planet = THREE.Mesh(THREE.SphereGeometry(size, 32, 16), THREE.MeshStandardMaterial(color=colour, roughness=0.8))
    planet.position.x = distance
    orbit.add(planet)
    orbits.append((orbit, speed))

    # a faint ring to show the path
    path = THREE.Mesh(
        THREE.RingGeometry(distance - 0.02, distance + 0.02, 128),
        THREE.MeshBasicMaterial(color="#333", side=THREE.DoubleSide),
    )
    path.rotation.x = -math.pi / 2
    scene.add(path)

    if name == "Earth":
        earth = planet

# --- a moon going round the Earth ---------------------------------------
moon_orbit = THREE.Group()
earth.add(moon_orbit)                  # the moon's group rides along with the Earth
moon = THREE.Mesh(THREE.SphereGeometry(0.14, 16, 8), THREE.MeshStandardMaterial(color="lightgray"))
moon.position.x = 0.9
moon_orbit.add(moon)

# --- stars: a few thousand points far away ---------------------------------
positions = []
for _ in range(2000):
    # a random direction, 80 to 150 units away
    theta = random.uniform(0, math.tau)
    phi = math.acos(random.uniform(-1, 1))
    r = random.uniform(80, 150)
    positions += [r * math.sin(phi) * math.cos(theta), r * math.cos(phi), r * math.sin(phi) * math.sin(theta)]
stars_geometry = THREE.BufferGeometry()
stars_geometry.setAttribute("position", THREE.Float32BufferAttribute(positions, 3))
scene.add(THREE.Points(stars_geometry, THREE.PointsMaterial(color="white", size=0.4)))

# --- every frame ---------------------------------------------------------
speed_up = 1.0

def on_key_down(key):
    global speed_up
    if key == "ArrowUp":
        speed_up *= 2
    elif key == "ArrowDown":
        speed_up /= 2

def update(dt):
    for orbit, speed in orbits:
        orbit.rotation.y += speed * math.tau * dt * speed_up / 4
    moon_orbit.rotation.y += 2 * dt * speed_up
    earth.rotation.y += 3 * dt * speed_up          # the Earth spins on its own axis too
    sun.rotation.y += 0.1 * dt

def draw():
    controls.update()
    renderer.render(scene, camera)

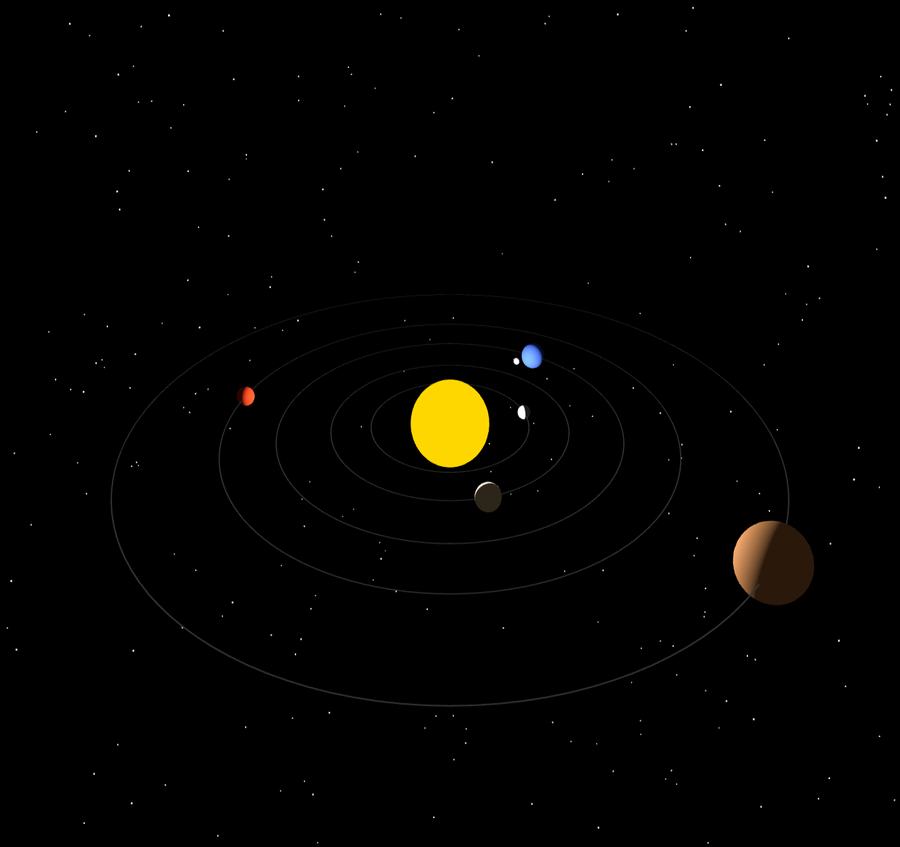

Drag to look around, pinch or scroll to zoom in, and press the up and down arrows (after clicking the preview) to speed time up or slow it down.

What each part does

  • The sun uses MeshBasicMaterial, which ignores light, so it always looks lit. The PointLight at the centre is what lights the planets, so each planet's sun-facing side is bright and its far side is dark. See lighting a scene.
  • Each planet sits distance units out along its own group's x axis. Turning the group (orbit.rotation.y) carries it round. Different speeds give different years.
  • The moon's group is added to the Earth, so it goes wherever the Earth goes, and turns on its own as well.
  • The paths are very thin flat rings (RingGeometry), laid flat by turning them a quarter turn about x.
  • The stars are one Points object with 2,000 positions, placed on a big shell around everything.

The sizes and distances are chosen to fit on screen, not to scale: at true scale the planets would be too small to see.

Try this

  • Add Saturn with a ring: a RingGeometry(1.4, 2.2, 64) added to the planet, tilted a little with rotation.x.
  • Tilt an orbit: set orbit.rotation.z = 0.1 so the planet goes slightly above and below the others.
  • Give Mars two small moons, each in its own group with its own speed.
