Bringing a JavaScript Example Across

Python drawing has the full set of JavaScript graphics functions: the web's 2D canvas for 2D, and three.js for 3D. The names are the same, so almost any JavaScript canvas or three.js example can be ported to Python by changing a handful of things. This page lists those changes and shows two examples ported side by side, first in JavaScript, then in Python.

The changes to make

In JavaScriptIn Python
new THREE.Mesh(g, m)THREE.Mesh(g, m): drop new. A capitalised name makes something new.
{ color: 0xff0000, roughness: 0.5 } optionscolor=0xff0000, roughness=0.5 keyword arguments
const x = 1;, let y = 2;x = 1, y = 2: drop const, let, var and the semicolons
ctx.fillStyle = "red"Stays as it is, or becomes ctx.fill_style = "red"; both work
const ctx = canvas.getContext("2d")Not needed: ctx and canvas are ready
function animate() { …; requestAnimationFrame(animate) }def draw(): (and def update(dt): for movement): called every frame for you
canvas.addEventListener("click", (e) => { … })def clicked(e): … then canvas.add_event_listener("click", clicked)
const w = ctx.measureText("hi").width (a value the page works out)w = await ctx.measure_text("hi").width (reading a value back)
Math.PI, Math.sin(a), Math.random()math.pi, math.sin(a), random.random(), after import math, random
for (let i = 0; i < 10; i++)for i in range(10):
true, false, nullTrue, False, None
a && b, `a
{ … } around blocksIndentation, after a :
window.innerWidth, canvas.widthwidth, height (the preview's size in points)
renderer.setSize(window.innerWidth, window.innerHeight) and a resize listenerrenderer.setSize(width, height, False); resizing is handled for you
import * as THREE from "three", import { OrbitControls } …Not needed: THREE is ready, and addons.OrbitControls
document, Image, Path2D, anything else on the pagejs.document, js.Image, js.Path2D

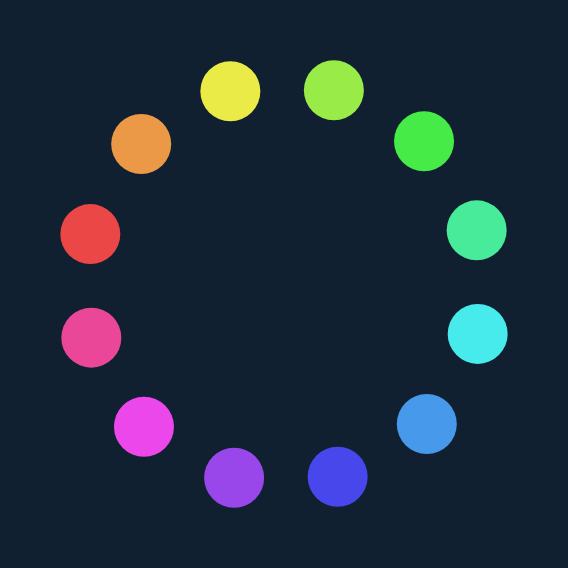

A 2D canvas example

In JavaScript:

const canvas = document.getElementById("c");
const ctx = canvas.getContext("2d");
let angle = 0;

function animate() {
  ctx.fillStyle = "#102030";
  ctx.fillRect(0, 0, canvas.width, canvas.height);
  for (let i = 0; i < 12; i++) {
    const a = angle + i * Math.PI / 6;
    ctx.fillStyle = "hsl(" + i * 30 + ", 80%, 60%)";
    ctx.beginPath();
    ctx.arc(200 + Math.cos(a) * 100, 150 + Math.sin(a) * 100, 15, 0, Math.PI * 2);
    ctx.fill();
  }
  angle += 0.02;
  requestAnimationFrame(animate);
}
animate();

In Python:

import math

angle = 0

def draw():
    global angle
    ctx.fill_style = "#102030"
    ctx.fill_rect(0, 0, width, height)
    for i in range(12):
        a = angle + i * math.pi / 6
        ctx.fill_style = f"hsl({i * 30}, 80%, 60%)"
        ctx.begin_path()
        ctx.arc(200 + math.cos(a) * 100, 150 + math.sin(a) * 100, 15, 0, math.pi * 2)
        ctx.fill()
    angle += 0.02

What changed: no getContext, the animate loop became draw(), let and the semicolons went, the for became range, Math became math, and global angle lets draw() change angle. The calls themselves are the same, here in their snake_case spelling.

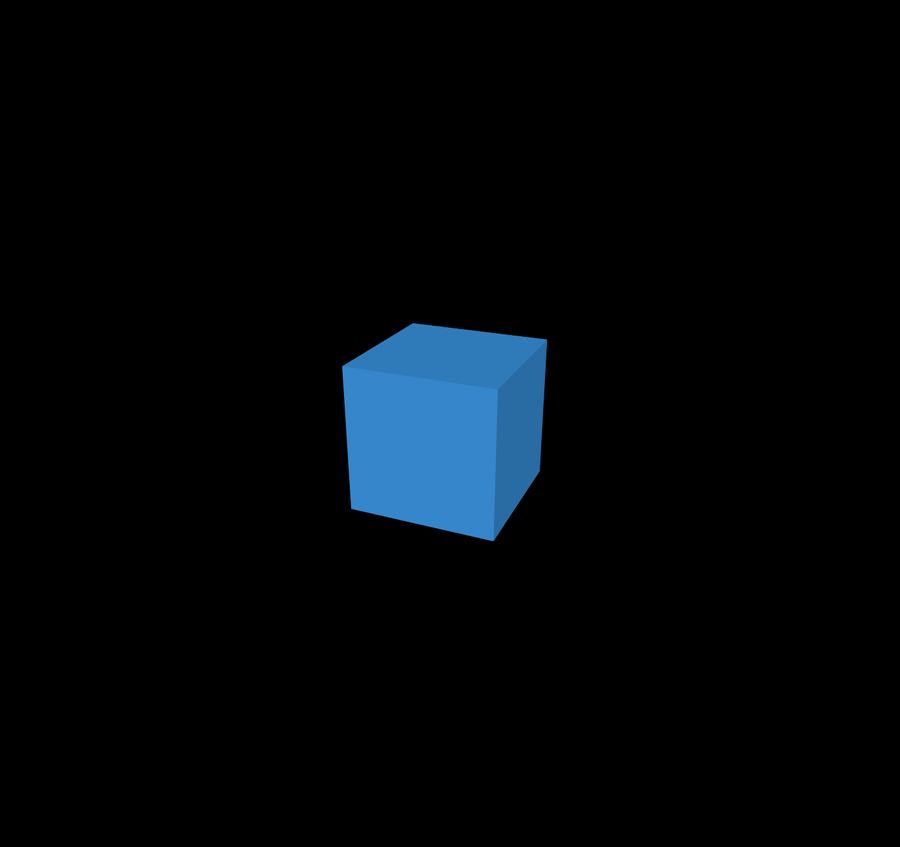

A three.js example

In JavaScript:

import * as THREE from "three";
import { OrbitControls } from "three/addons/controls/OrbitControls.js";

const renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.appendChild(renderer.domElement);

const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(60, window.innerWidth / window.innerHeight, 0.1, 100);
camera.position.set(2, 2, 4);
const controls = new OrbitControls(camera, renderer.domElement);

const cube = new THREE.Mesh(
  new THREE.BoxGeometry(1, 1, 1),
  new THREE.MeshStandardMaterial({ color: 0x44aaff, roughness: 0.4 })
);
scene.add(cube);
scene.add(new THREE.AmbientLight(0xffffff, 0.4));
const light = new THREE.DirectionalLight(0xffffff, 2);
light.position.set(3, 4, 5);
scene.add(light);

window.addEventListener("resize", () => {
  camera.aspect = window.innerWidth / window.innerHeight;
  camera.updateProjectionMatrix();
  renderer.setSize(window.innerWidth, window.innerHeight);
});

renderer.setAnimationLoop(() => {
  cube.rotation.y += 0.01;
  controls.update();
  renderer.render(scene, camera);
});

In Python:

renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)

scene = THREE.Scene()
camera = THREE.PerspectiveCamera(60, width / height, 0.1, 100)
camera.position.set(2, 2, 4)
controls = addons.OrbitControls(camera, canvas)

cube = THREE.Mesh(
    THREE.BoxGeometry(1, 1, 1),
    THREE.MeshStandardMaterial(color=0x44aaff, roughness=0.4),
)
scene.add(cube)
scene.add(THREE.AmbientLight(0xffffff, 0.4))
light = THREE.DirectionalLight(0xffffff, 2)
light.position.set(3, 4, 5)
scene.add(light)

def draw():
    cube.rotation.y += 0.01
    controls.update()
    renderer.render(scene, camera)

What changed: no imports, no new, the options object became keyword arguments, the renderer draws on the preview's canvas instead of adding a new one to the page, the resize listener is gone (the preview refits the renderer and camera itself), and the animation loop became draw().

Things that work differently

  • Values the page works out need await to read in Python, and each read waits a frame. Keep your own numbers in Python where you can. A value you set from Python can be read back straight away.
  • Callbacks run a moment later. A Python function passed to the page (an event listener) is called on the next frame, not inside the page's own code. That suits events. It does not suit functions three.js expects an answer from straight away, such as traverse or a custom sort; keep your objects in a Python list instead.
  • Libraries outside three.js and its orbit controls are not loaded. Everything in the core of three.js is there, and so are WebGL 2 and WebGPU for your own shaders (GPU: WebGL and WebGPU).
