Colours

Every way to write a colour in a Python drawing, in 2D and in 3D: colour names, hex codes, rgb, hsl, see-through colours, gradients and patterns. Each one has a short program you can paste into a Python file and run.

In 2D a colour is a piece of text that you give to ctx.fill_style or ctx.stroke_style. The same text works in 3D too, along with a few extra forms shown at the end.

Colour names

The easiest way: just say the colour. There are about 140 names, from the plain ("red", "blue", "black") to the fancy ("tomato", "orchid", "papayawhip", "cornflowerblue"). Capital letters don't matter.

tomato
gold
mediumseagreen
deepskyblue
orchid
slategray
papayawhip
cornflowerblue
crimson
darkorange
khaki
teal
navy
hotpink
sienna
lavender

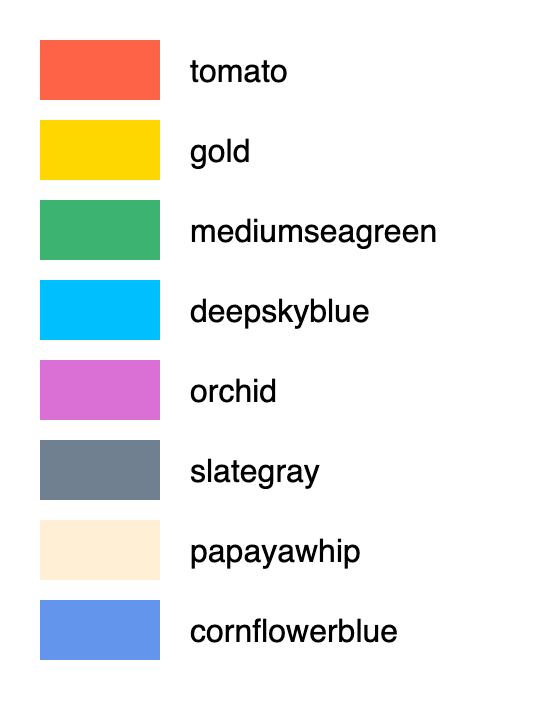

names = ["tomato", "gold", "mediumseagreen", "deepskyblue", "orchid", "slategray", "papayawhip", "cornflowerblue"]

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.font = "16px sans-serif"
    for i, name in enumerate(names):
        ctx.fill_style = name
        ctx.fill_rect(20, 20 + i * 40, 60, 30)
        ctx.fill_style = "black"
        ctx.fill_text(name, 95, 41 + i * 40)

"transparent" is a colour too: it draws nothing.

Hex codes: #rrggbb

A hex code mixes red, green and blue light. It is a # and then three pairs of digits, one pair each for red, green and blue. Each pair goes from 00 (none) to ff (all), counting in hexadecimal: 0 1 2 3 4 5 6 7 8 9 a b c d e f.

CodeColour
"#ff0000"All red, no green, no blue: red
"#00ff00"Green
"#0000ff"Blue
"#ffff00"Red and green light together make yellow
"#ffffff"All three at full: white
"#000000"None at all: black
"#808080"All three at half: grey
"#ff6347"Tomato

There are two more forms:

  • Short hex, "#f63": one digit per colour, each doubled, so "#f63" is "#ff6633".
  • Hex with see-through, "#ff634780": a fourth pair says how solid the colour is, from 00 (invisible) to ff (solid). 80 is about half. The short form has one too: "#f638".

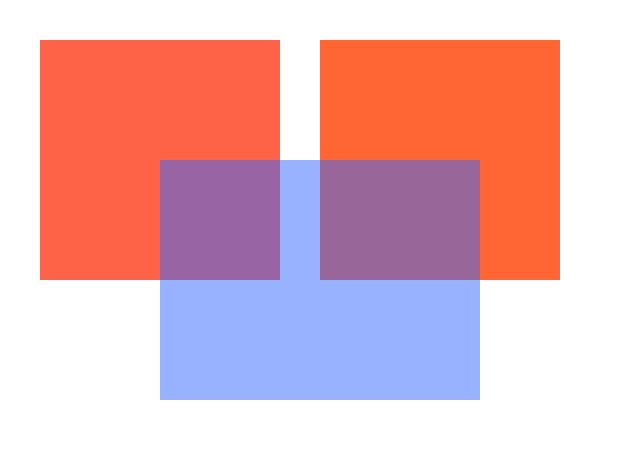

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "#ff6347"        # tomato
    ctx.fill_rect(20, 20, 120, 120)
    ctx.fill_style = "#f63"           # short form of #ff6633
    ctx.fill_rect(160, 20, 120, 120)
    ctx.fill_style = "#3366ff80"      # blue at about half strength, over the others
    ctx.fill_rect(80, 80, 160, 120)

Many design tools show colours as hex codes, so this is how you copy a colour you have seen somewhere else.

rgb() and rgba()

The same red, green and blue mix written with ordinary numbers from 0 to 255:

  • "rgb(255, 99, 71)" is tomato (the same as "#ff6347").
  • "rgba(255, 99, 71, 0.5)" adds a fourth number, the alpha: how solid it is, from 0 (invisible) to 1 (solid).

Because these are numbers, they are easy to work out in Python with an f-string:

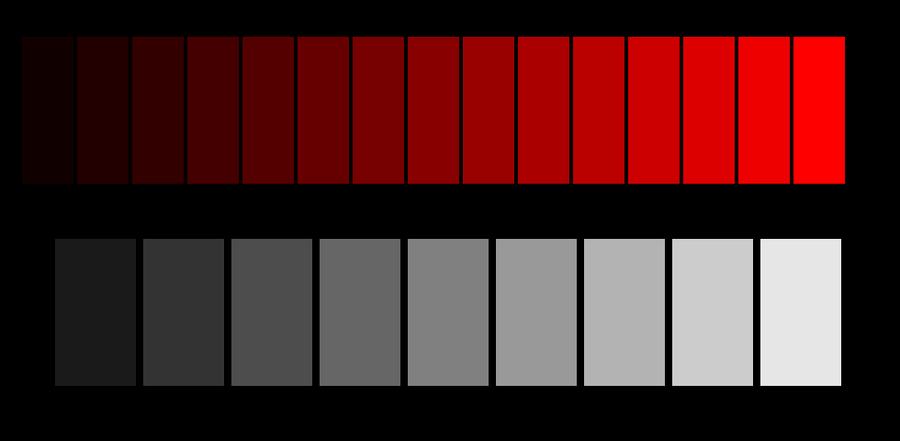

def draw():
    ctx.fill_style = "black"
    ctx.fill_rect(0, 0, width, height)
    # from black to full red, in 16 steps
    for i in range(16):
        red = i * 17                  # 0, 17, 34 ... 255
        ctx.fill_style = f"rgb({red}, 0, 0)"
        ctx.fill_rect(10 + i * 30, 20, 28, 80)
    # see-through white, getting more solid
    for i in range(10):
        ctx.fill_style = f"rgba(255, 255, 255, {i / 10})"
        ctx.fill_rect(10 + i * 48, 130, 44, 80)

hsl(): colours by hue, saturation and lightness

hsl describes a colour the way people talk about it: which colour it is, how vivid it is, and how light it is. That makes it the most useful colour form in code.

"hsl(hue, saturation%, lightness%)"

Hue: an angle round the colour wheel

Picture the colours of the rainbow bent into a circle. The hue is how far round the circle you go, in degrees:

HueColour
0Red
30Orange
60Yellow
120Green
180Cyan
240Blue
300Magenta
360Back to red

Numbers past 360 carry on round the wheel, so 400 is the same as 40.

These are the hues at every 30 degrees, at full strength:

0
30
60
90
120
150
180
210
240
270
300
330
360

Saturation: how vivid

100% is the strongest colour; 50% is softer; 0% is no colour at all, just grey. Here is hue 200 from 0% to 100%:

0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%

Lightness: how light

0% is always black and 100% always white, whatever the hue. 50% is the full colour. Below 50% is darker, above it paler. Hue 200 from 0% to 100%:

0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%

Alpha with hsla()

"hsla(200, 80%, 50%, 0.5)" adds alpha, as rgba does: 0 is invisible, 1 is solid. Over a checkerboard, from 0 to 1:

0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1

Try it

Move the sliders, then copy the line into your program.

ctx.fill_style = "hsl(200, 80%, 50%)"

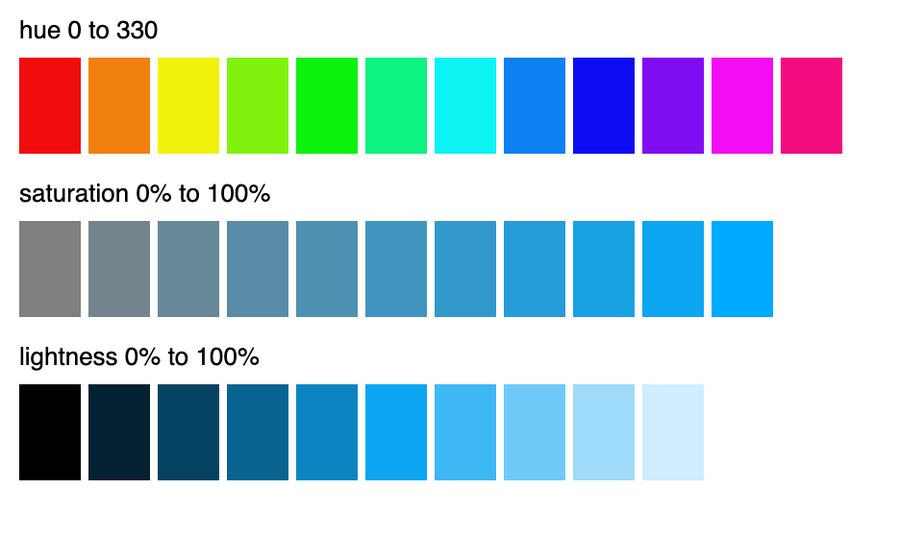

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.font = "13px sans-serif"
    # hue: round the colour wheel
    for i in range(12):
        ctx.fill_style = f"hsl({i * 30}, 90%, 50%)"
        ctx.fill_rect(10 + i * 36, 30, 32, 50)
    ctx.fill_style = "black"
    ctx.fill_text("hue 0 to 330", 10, 20)
    # saturation: grey to vivid
    for i in range(11):
        ctx.fill_style = f"hsl(200, {i * 10}%, 50%)"
        ctx.fill_rect(10 + i * 36, 115, 32, 50)
    ctx.fill_style = "black"
    ctx.fill_text("saturation 0% to 100%", 10, 105)
    # lightness: black to white
    for i in range(11):
        ctx.fill_style = f"hsl(200, 90%, {i * 10}%)"
        ctx.fill_rect(10 + i * 36, 200, 32, 50)
    ctx.fill_style = "black"
    ctx.fill_text("lightness 0% to 100%", 10, 190)

Why hsl is handy in code

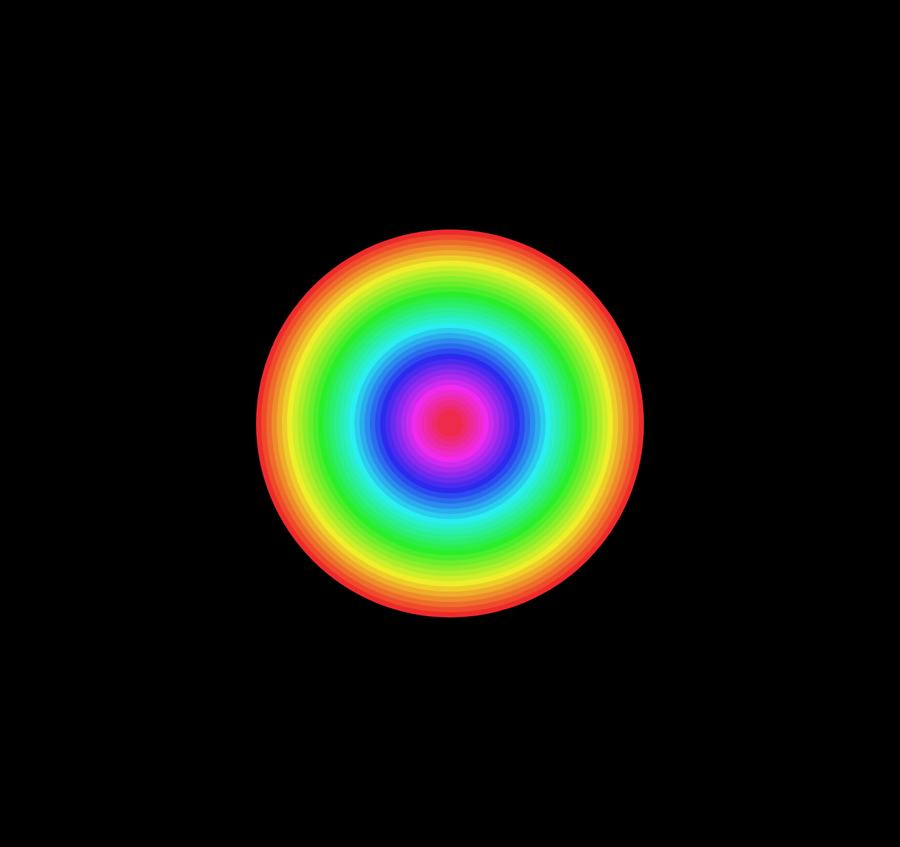

A rainbow is one loop. Step the hue and keep the rest the same:

import math

def draw():
    ctx.fill_style = "black"
    ctx.fill_rect(0, 0, width, height)
    for i in range(36):
        ctx.fill_style = f"hsl({i * 10}, 85%, 55%)"
        ctx.begin_path()
        ctx.arc(width / 2, height / 2, 150 - i * 4, 0, math.tau)
        ctx.fill()

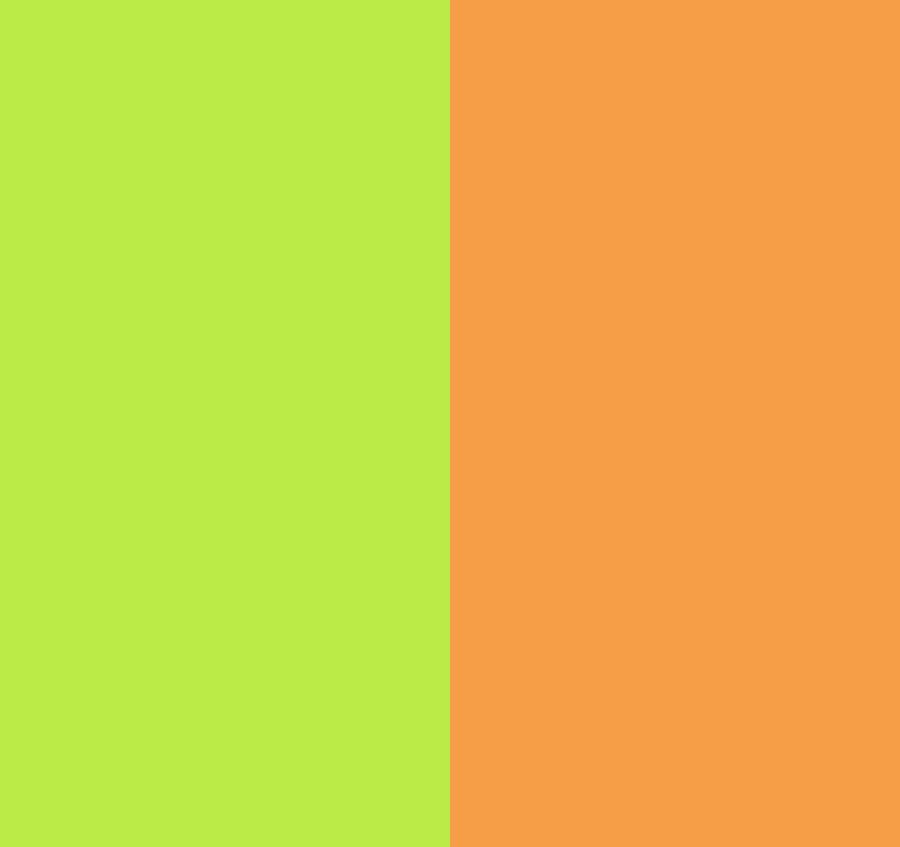

Animating colour is changing one number. Make the hue grow over time and the colour cycles round the wheel; change the lightness and it fades.

t = 0

def update(dt):
    global t
    t += dt

def draw():
    hue = t * 60                         # once round the wheel every 6 seconds
    ctx.fill_style = f"hsl({hue}, 80%, 60%)"
    ctx.fill_rect(0, 0, width / 2, height)
    light = 50 + 40 * abs((t % 2) - 1)   # glides between 50% and 90%
    ctx.fill_style = f"hsl(30, 90%, {light}%)"
    ctx.fill_rect(width / 2, 0, width / 2, height)

A colour that matches its value. In a chart or a game, f"hsl({120 * health}, 80%, 50%)" goes from green (healthy, 1) through yellow to red (0).

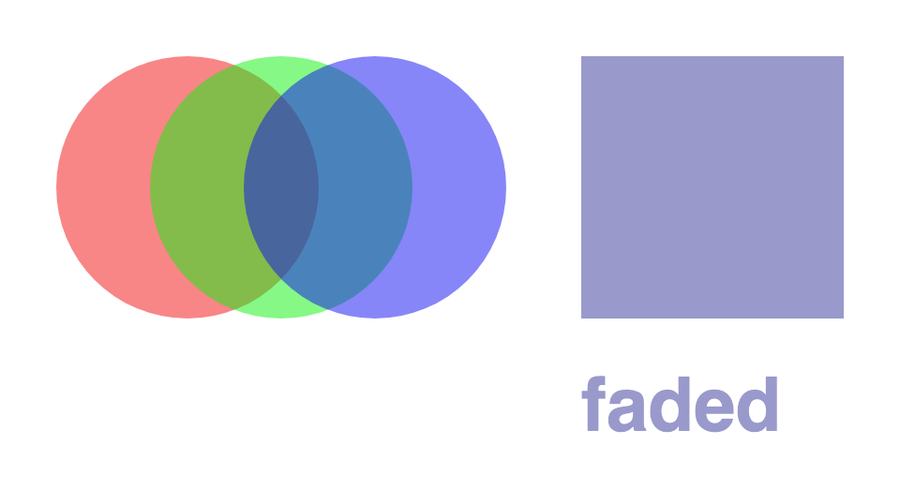

Transparent colours: making things see-through

There are two ways, and they mix:

  • Alpha in the colour: "rgba(…, 0.5)", "hsla(…, 0.5)" or "#rrggbb80". Only that one colour is see-through.
  • ctx.global_alpha = 0.5: everything drawn after it is see-through, whatever its colour, including pictures and text. Set it back to 1 when you are done, or wrap it in ctx.save() and ctx.restore().

When both are used, they multiply: half-see-through colour with global_alpha = 0.5 shows at a quarter.

import math

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    # alpha in the colour
    for i, hue in enumerate([0, 120, 240]):
        ctx.fill_style = f"hsla({hue}, 90%, 50%, 0.5)"
        ctx.begin_path()
        ctx.arc(110 + i * 50, 110, 70, 0, math.tau)
        ctx.fill()
    # global_alpha: solid colours, drawn see-through
    ctx.save()
    ctx.global_alpha = 0.4
    ctx.fill_style = "navy"
    ctx.fill_rect(320, 40, 140, 140)
    ctx.font = "bold 40px sans-serif"
    ctx.fill_text("faded", 320, 240)
    ctx.restore()

Gradients and patterns: colour that blends

A fill or stroke style can be more than one colour.

Gradients blend between colours. Make one, add colour stops (positions from 0 to 1), then use it as a style:

CallBlends
ctx.create_linear_gradient(x0, y0, x1, y1)Along a line
ctx.create_radial_gradient(x0, y0, r0, x1, y1, r1)Outwards from one circle to another
ctx.create_conic_gradient(angle, x, y)Round a centre, like a colour wheel
gradient.add_color_stop(position, colour)Puts a colour at a point along it; any colour form works

Patterns repeat a picture, or another canvas you drew on: ctx.create_pattern(picture, "repeat"). The second word can be "repeat", "repeat-x", "repeat-y" or "no-repeat".

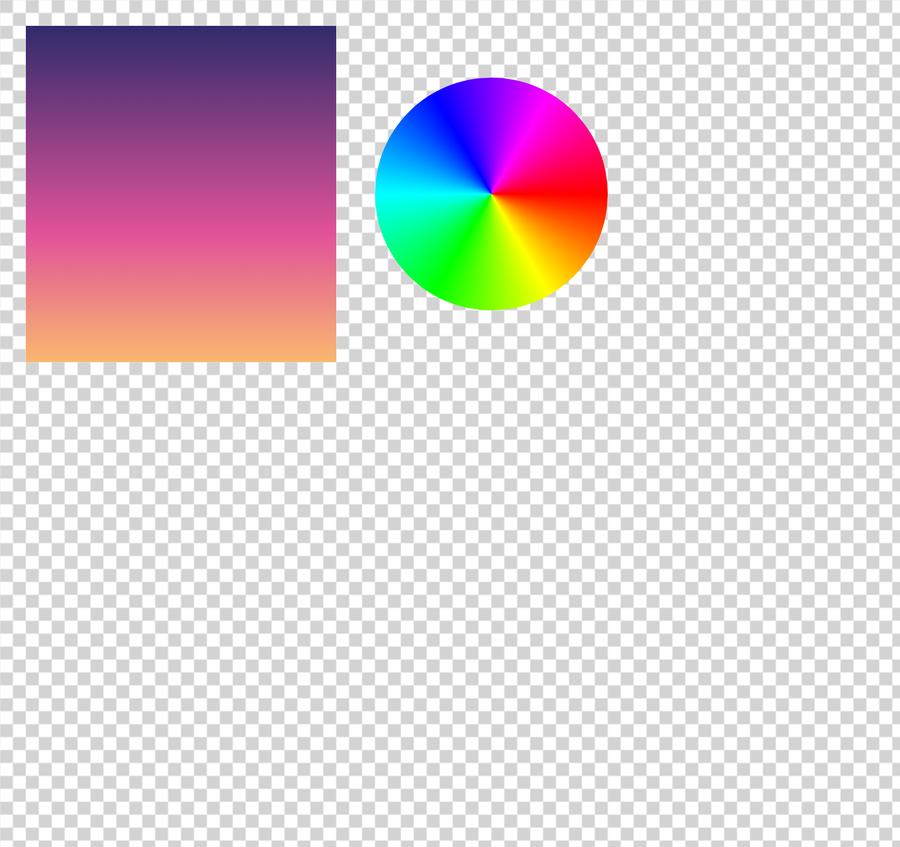

# a linear gradient: sunset
sky = ctx.create_linear_gradient(0, 0, 0, 300)
sky.add_color_stop(0, "hsl(230, 60%, 25%)")
sky.add_color_stop(0.6, "hsl(330, 70%, 60%)")
sky.add_color_stop(1, "hsl(40, 100%, 70%)")

# a conic gradient: a colour wheel
wheel = ctx.create_conic_gradient(0, 380, 150)
for i in range(7):
    wheel.add_color_stop(i / 6, f"hsl({i * 60}, 100%, 50%)")

# a pattern from a small canvas we draw a check on
tile = js.document.create_element("canvas")
tile.width = 20
tile.height = 20
t = tile.get_context("2d")
t.fill_style = "white"
t.fill_rect(0, 0, 20, 20)
t.fill_style = "lightgray"
t.fill_rect(0, 0, 10, 10)
t.fill_rect(10, 10, 10, 10)
checks = ctx.create_pattern(tile, "repeat")

def draw():
    ctx.fill_style = checks
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = sky
    ctx.fill_rect(20, 20, 240, 260)
    ctx.fill_style = wheel
    ctx.begin_path()
    ctx.arc(380, 150, 90, 0, 6.283)
    ctx.fill()

Colours in 3D

Materials, lights and the background take colours too. Every text form above works, and 3D adds a few of its own.

FormExampleNotes
Textcolor="tomato", color="#ff6347", color="hsl(200, 80%, 50%)"Any colour text from this page, without alpha
Hex numbercolor=0xff6347The same six digits as a hex code, written as a Python number with 0x in front
A colour objectTHREE.Color("tomato"), THREE.Color(0xff6347)For scene.background, or to keep and change
Red, green, blue from 0 to 1THREE.Color(1, 0.4, 0.3)Note: 0 to 1, not 0 to 255

To change a colour that is already there, use the colour's own methods:

CallWhat it does
mesh.material.color.set("gold")Any colour form
mesh.material.color.setHSL(h, s, l)Hue, saturation and lightness all from 0 to 1 here, not degrees and percent. Hue 0.33 is green, 0.66 is blue.
mesh.material.color.setRGB(r, g, b)Each from 0 to 1

Materials have a few colour settings of their own:

  • color: the surface colour that light falls on.
  • emissive: a colour the surface gives off by itself, as if it glows. It shows even in the dark. emissiveIntensity makes it stronger.
  • opacity with transparent=True: see-through, from 0 to 1. Opacity does nothing unless transparent is on.
  • scene.background = THREE.Color("…"): the colour behind everything.

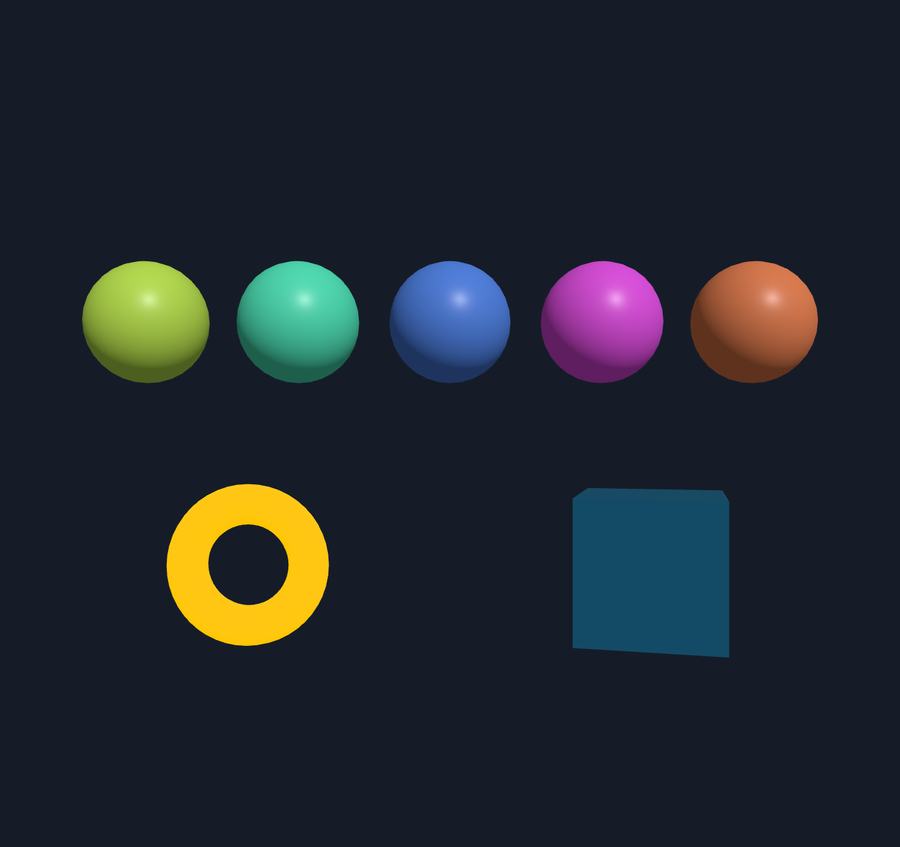

import math

renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
scene = THREE.Scene()
scene.background = THREE.Color("hsl(220, 30%, 12%)")
camera = THREE.PerspectiveCamera(50, width / height, 0.1, 100)
camera.position.set(0, 0, 9)
scene.add(THREE.AmbientLight("white", 0.4))
sun = THREE.DirectionalLight("white", 2)
sun.position.set(2, 4, 5)
scene.add(sun)

balls = []
for i in range(5):
    material = THREE.MeshStandardMaterial(color=0xff6347, roughness=0.4)
    ball = THREE.Mesh(THREE.SphereGeometry(0.6, 32, 16), material)
    ball.position.x = (i - 2) * 1.5
    ball.position.y = 1
    scene.add(ball)
    balls.append(ball)

glow = THREE.Mesh(THREE.TorusGeometry(0.6, 0.2, 16, 48),
                  THREE.MeshStandardMaterial(color="black", emissive="orange", emissiveIntensity=1.5))
glow.position.set(-2, -1.4, 0)
scene.add(glow)

glass = THREE.Mesh(THREE.BoxGeometry(1.4, 1.4, 1.4),
                   THREE.MeshStandardMaterial(color="deepskyblue", transparent=True, opacity=0.4))
glass.position.set(2, -1.4, 0)
scene.add(glass)

t = 0

def update(dt):
    global t
    t += dt
    for i, ball in enumerate(balls):
        # setHSL takes 0 to 1: each ball a different hue, all drifting round the wheel
        ball.material.color.setHSL((t * 0.1 + i / 5) % 1, 0.8, 0.5)
    glass.rotation.y += dt

def draw():
    renderer.render(scene, camera)
