Tutorial: A Bouncing Ball

A ball that falls, bounces off the floor and walls, and slows down a little with every bounce. Tap or click to throw it again. Then a version with many balls. This is the pattern behind almost every moving picture: keep numbers in Python, change them in update(dt), and paint them in draw().

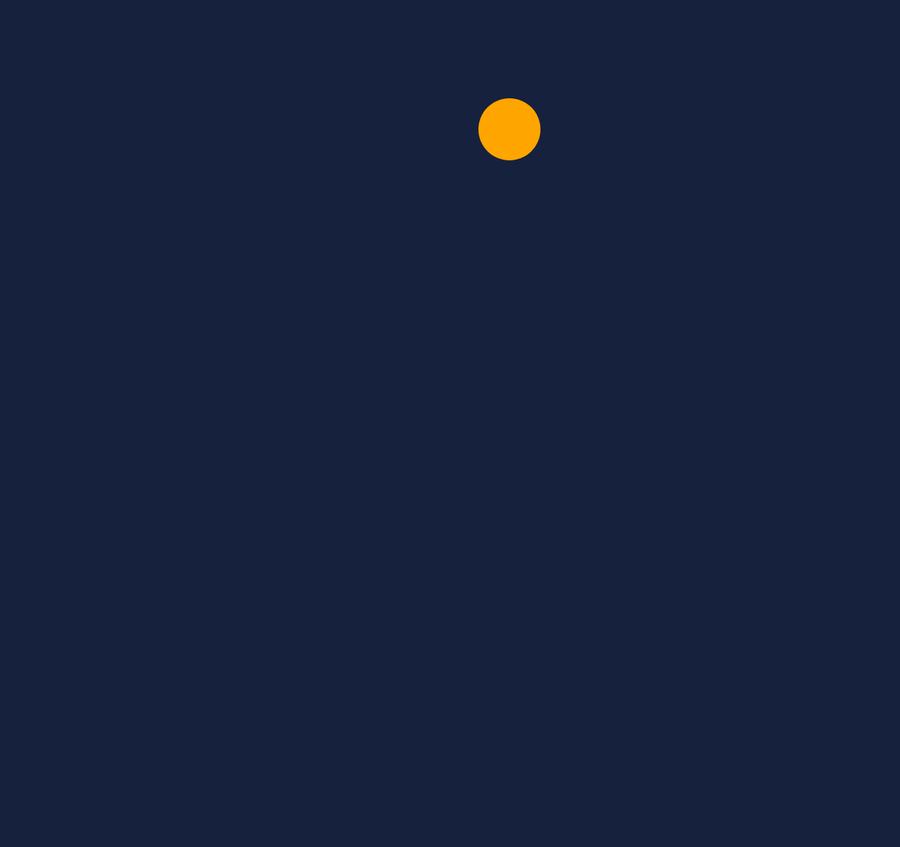

1. A ball that moves

import math

x, y = 100, 100      # where the ball is
vx, vy = 180, 0      # how fast it moves, in points per second
r = 24               # its radius

def update(dt):
    global x, y
    x += vx * dt
    y += vy * dt

def draw():
    ctx.fill_style = "#16213e"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "orange"
    ctx.begin_path()
    ctx.arc(x, y, r, 0, math.tau)
    ctx.fill()

Run it and the ball slides off to the right and away. Each frame, update(dt) moves it by its speed times dt, the time since the last frame. global x, y lets the function change the variables made at the top.

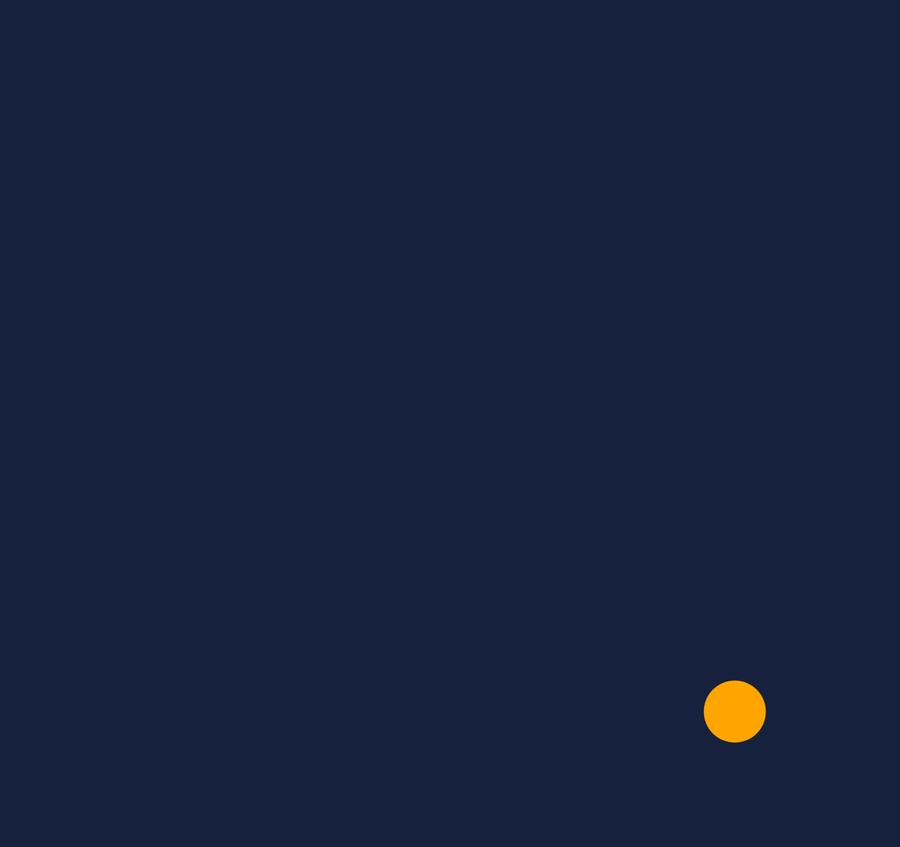

2. Gravity and bounces

Gravity is a steady push downwards: add to vy every frame. A bounce is a speed turned round: when the ball reaches the floor, put it back on the floor and flip vy. Multiplying by 0.8 rather than 1 loses a little speed on each bounce.

# Tap or click to throw the ball.
import math

x, y = 100, 100
vx, vy = 180, 0
r = 24
gravity = 900        # points per second, per second
bounce = 0.8         # how much speed is kept after a bounce

def update(dt):
    global x, y, vx, vy
    vy += gravity * dt
    x += vx * dt
    y += vy * dt

    if y > height - r:           # the floor
        y = height - r
        vy = -vy * bounce
        vx *= 0.99               # a little friction
    if x < r:                    # the left wall
        x = r
        vx = -vx * bounce
    if x > width - r:            # the right wall
        x = width - r
        vx = -vx * bounce

def on_mouse_down(mx, my):
    global x, y, vx, vy
    x, y = mx, my
    vx, vy = 300, -500           # throw it up and to the right

def draw():
    ctx.fill_style = "#16213e"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "orange"
    ctx.begin_path()
    ctx.arc(x, y, r, 0, math.tau)
    ctx.fill()

on_mouse_down(mx, my) is called when you click, or touch the preview with a finger. It moves the ball to that spot and throws it.

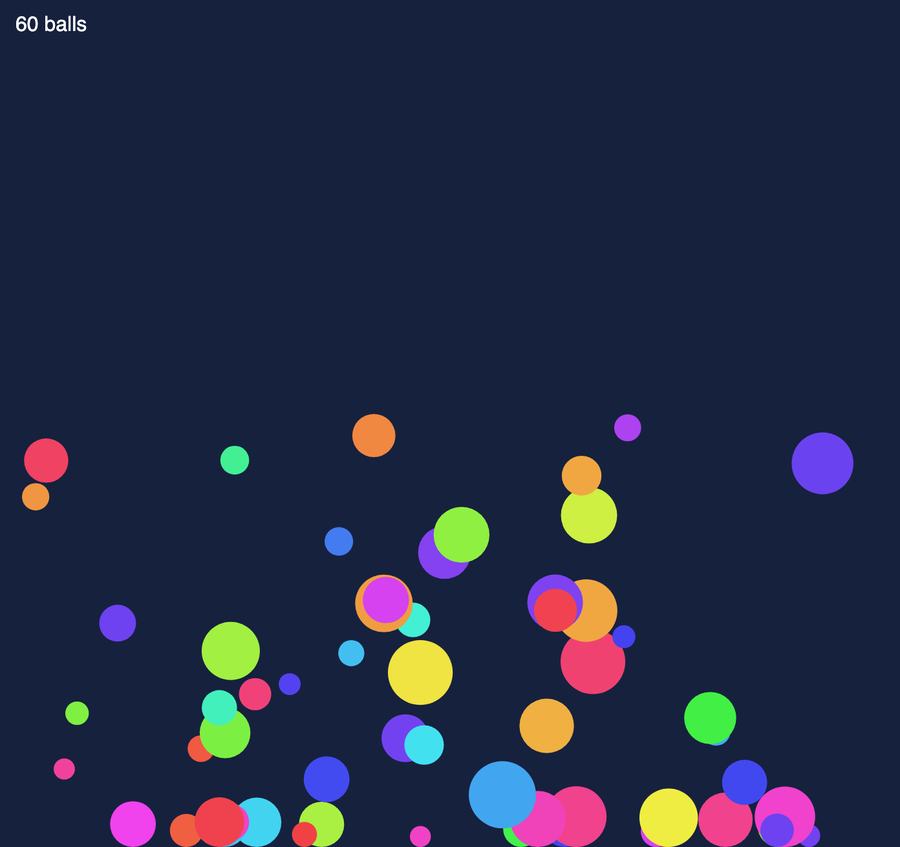

3. Lots of balls

With many balls, each one needs its own numbers. A small class keeps them together.

# Tap or click to add ten more balls.
import math, random

class Ball:
    def __init__(self, x, y):
        self.x, self.y = x, y
        self.vx = random.uniform(-250, 250)
        self.vy = random.uniform(-600, -200)
        self.r = random.uniform(8, 26)
        self.colour = f"hsl({random.randint(0, 360)}, 85%, 60%)"

    def update(self, dt):
        self.vy += 900 * dt
        self.x += self.vx * dt
        self.y += self.vy * dt
        if self.y > height - self.r:
            self.y = height - self.r
            self.vy *= -0.8
        if self.x < self.r or self.x > width - self.r:
            self.x = min(max(self.x, self.r), width - self.r)
            self.vx *= -0.8

    def draw(self):
        ctx.fill_style = self.colour
        ctx.begin_path()
        ctx.arc(self.x, self.y, self.r, 0, math.tau)
        ctx.fill()

balls = [Ball(random.uniform(50, 350), 100) for _ in range(20)]

def on_mouse_down(x, y):
    for _ in range(10):
        balls.append(Ball(x, y))

def update(dt):
    for ball in balls:
        ball.update(dt)

def draw():
    ctx.fill_style = "#16213e"
    ctx.fill_rect(0, 0, width, height)
    for ball in balls:
        ball.draw()
    ctx.fill_style = "white"
    ctx.font = "16px sans-serif"
    ctx.fill_text(f"{len(balls)} balls", 12, 24)

Turn on Frame rate in the footer and keep adding balls to see how many your device draws smoothly.

Try this

  • Change gravity to 200 for the Moon, or make it negative.
  • Let the balls bounce off the ceiling too.
  • Give each ball a trail: paint the background with "rgba(22, 33, 62, 0.3)" instead of a solid colour, so the last few frames fade out slowly.
