How a Program Is Shaped

A program for the preview can take one of four shapes: draw once, draw every frame, loop, or draw step by step. This page shows each one, then how to read the keyboard, mouse and touch, and how to read a value back from the preview.

The names you can use

These are ready in every file, with no import:

1. Draw once

Write your drawing at the top level, with no functions. It runs once, top to bottom, and the program finishes.

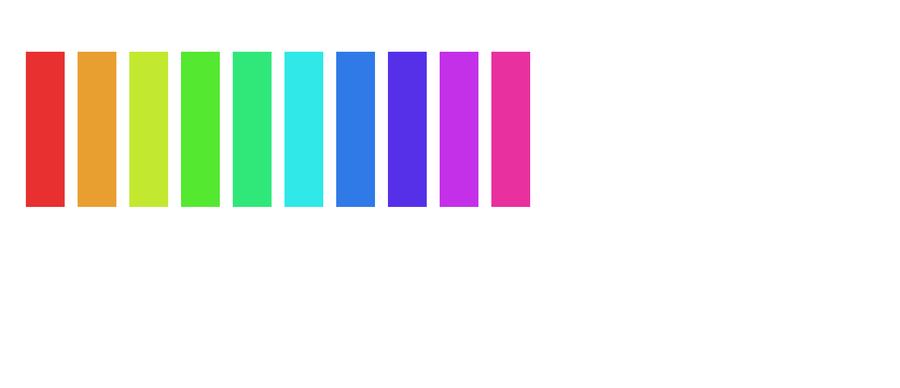

ctx.fill_style = "white"
ctx.fill_rect(0, 0, width, height)

for i in range(10):
    ctx.fill_style = f"hsl({i * 36}, 80%, 55%)"
    ctx.fill_rect(20 + i * 40, 40, 30, 120)

Tap to enlarge

This is the simplest shape, good for trying things out. The drawing stays put when the preview changes size, but it does not redraw to fit: for a picture that adapts to the preview, or that moves, put the drawing in draw() (below), which redraws it every frame. Most examples in this guide do.

2. Draw every frame: draw() and update(dt)

Define a function called draw and it is called every frame, many times a second. Define update(dt) too and it is called just before each draw(), with dt the number of seconds since the last frame (about 0.016 at 60 frames a second).

Use update to move things and draw to paint them. Paint the background first in draw(): the preview keeps what was drawn last frame until you cover it. Set the colours, font and line width in draw() too, next to what they style: a resize of the preview resets them.

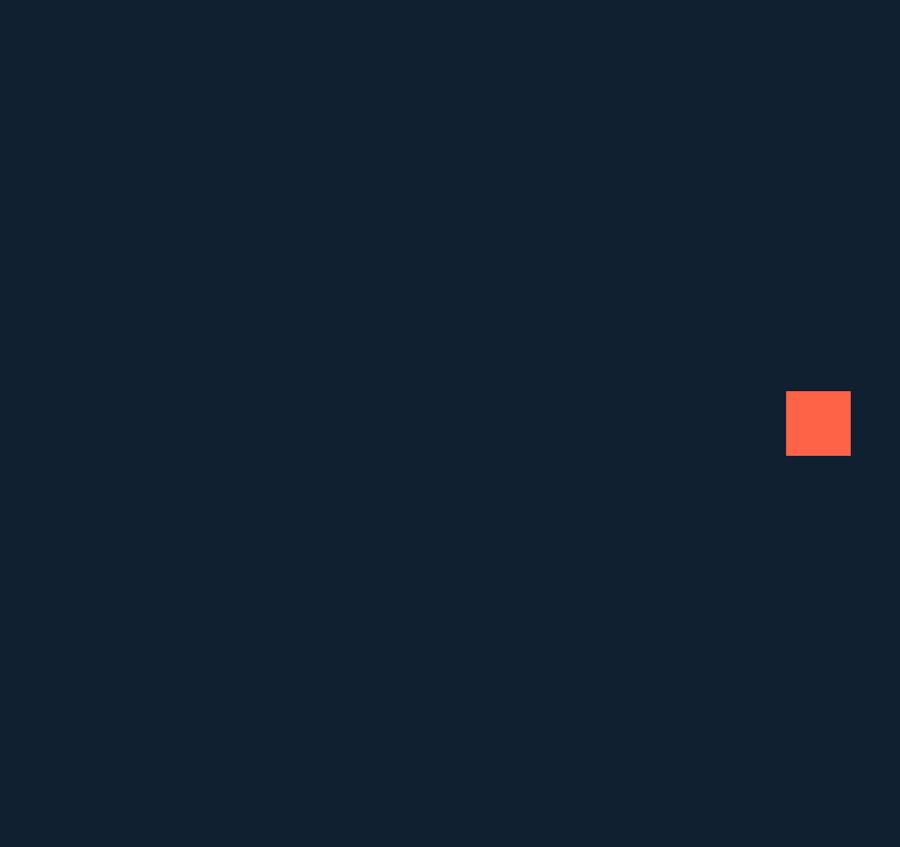

x = 0

def update(dt):
    global x
    x = (x + 150 * dt) % width      # 150 points per second

def draw():
    ctx.fill_style = "#102030"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "tomato"
    ctx.fill_rect(x, height / 2 - 25, 50, 50)

Tap to enlarge

Moving by speed * dt keeps the speed the same on a fast device and a slow one.

You can also define setup(). It is called once, after the top level has run and before the first frame. Code at the top level does the same job, so use whichever reads better.

A program with draw() or update() keeps running until you press Stop.

3. A loop with await frame()

If you prefer to write a loop, await frame() shows what you have drawn and waits for the next frame. Every pass of the loop is one frame.

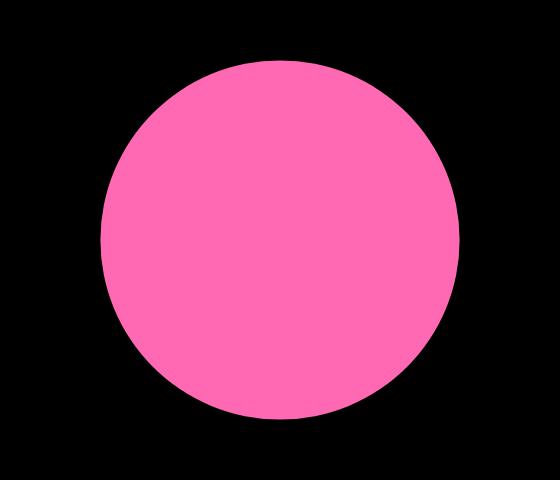

import math

t = 0
while True:
    ctx.fill_style = "black"
    ctx.fill_rect(0, 0, width, height)
    r = 60 + 40 * math.sin(t)
    ctx.fill_style = "hotpink"
    ctx.begin_path()
    ctx.arc(width / 2, height / 2, r, 0, math.tau)
    ctx.fill()
    t += 0.05
    await frame()

Tap to enlarge

await works at the top level of the file, with no async def needed.

Every while True: loop must await frame() (or await sleep(...)). A loop that never waits never lets the preview draw, and the program looks frozen. See Tips and limits.

await sleep(seconds) waits for that long, which is handy for slow, step-by-step programs:

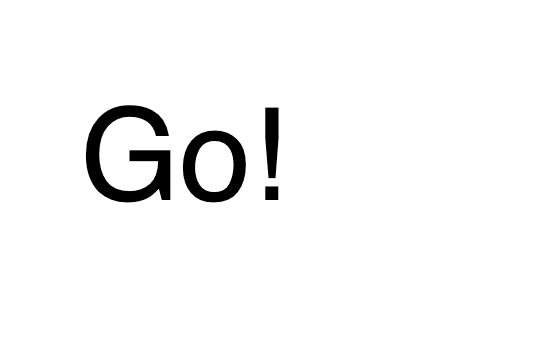

for word in ["3", "2", "1", "Go!"]:
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "black"
    ctx.font = "64px sans-serif"
    ctx.fill_text(word, 40, 100)
    await sleep(1)

Tap to enlarge

4. Drawing step by step with await flush()

Without draw(), the preview shows a top-level drawing when the program finishes. To watch it being built, call await flush(): it sends what has been drawn so far, now, and carries on.

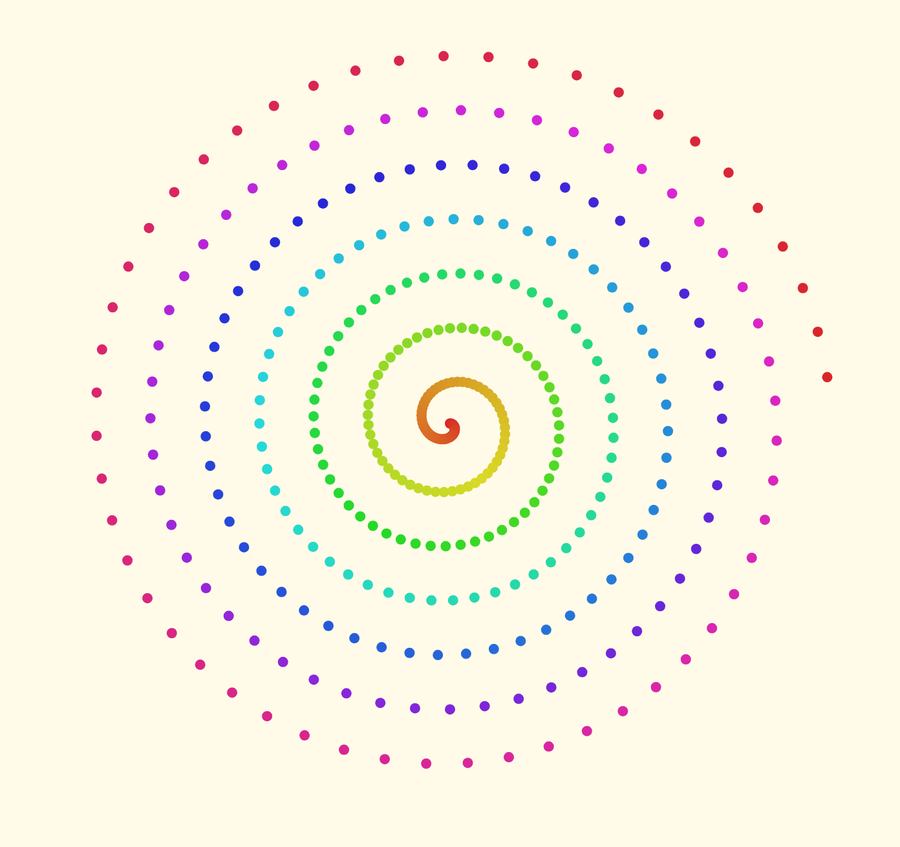

import math

ctx.fill_style = "#fffbe8"
ctx.fill_rect(0, 0, width, height)
cx, cy = width / 2, height / 2
for i in range(360):
    a = math.radians(i * 7)
    r = i * min(width, height) / 800
    ctx.fill_style = f"hsl({i}, 70%, 50%)"
    ctx.begin_path()
    ctx.arc(cx + math.cos(a) * r, cy + math.sin(a) * r, 4, 0, math.tau)
    ctx.fill()
    if i % 6 == 0:
        await flush()

Tap to enlarge

Each flush() costs a frame, so flush every few steps rather than after every single shape.

Starting by itself when the file opens

A file that draws opens with its preview beside the code, and waits for you to press Run. To have it start by itself whenever its tab is on screen, put this line near the top of the file:

# pyctures: autorun

It is a comment, so Python ignores it. The program stops when you switch to another tab and starts again when you come back. Use it for pictures and animations; leave it out of programs that do a lot of work before they draw. The demos in the Demos folder have it.

Keyboard, mouse and touch input

Your Python program can read keyboard input, the mouse and touch. Click or tap the preview first so it has the keyboard.

What is pressed right now: keys and mouse

keys is a set of the keys held down, by name: "ArrowLeft", "ArrowRight", "ArrowUp", "ArrowDown", " " (space), "a", "Enter" and so on. mouse.x and mouse.y are where the pointer is, and mouse.down is True while the button or a finger is pressed. A finger on a touch screen counts as the mouse.

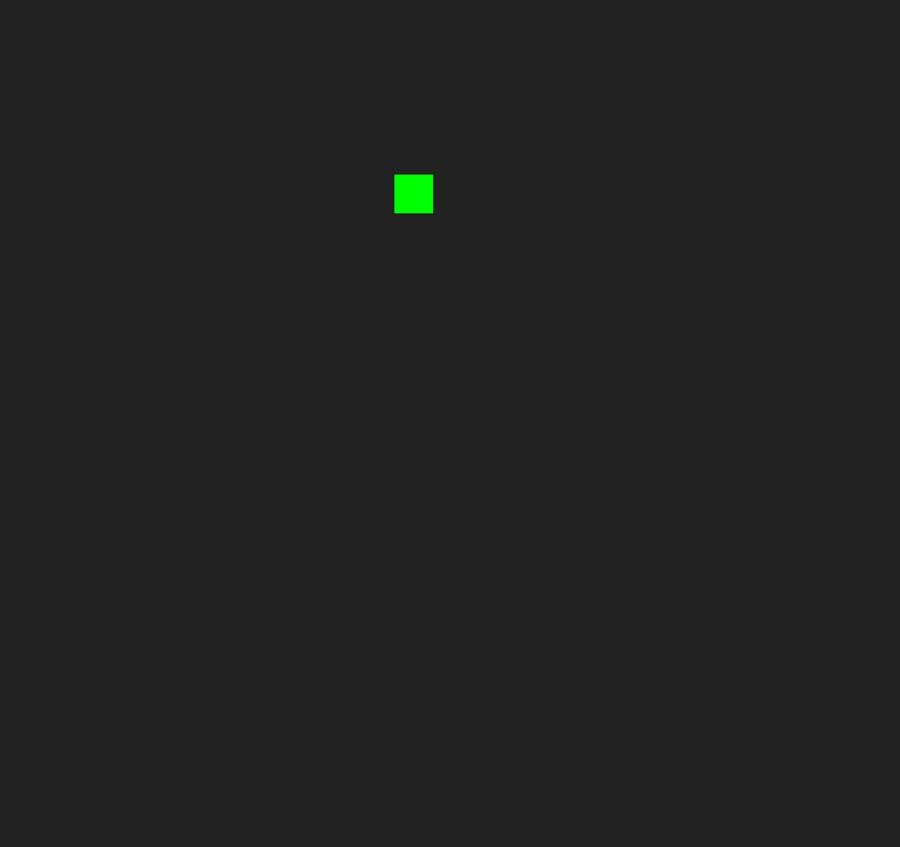

x, y = 200, 150

def update(dt):
    global x, y
    if "ArrowLeft" in keys:  x -= 200 * dt
    if "ArrowRight" in keys: x += 200 * dt
    if "ArrowUp" in keys:    y -= 200 * dt
    if "ArrowDown" in keys:  y += 200 * dt
    if mouse.down:
        x, y = mouse.x, mouse.y

def draw():
    ctx.fill_style = "#222"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "lime"
    ctx.fill_rect(x - 15, y - 15, 30, 30)

Tap to enlarge

When something happens: the on_ functions

Define any of these and they are called when the event happens:

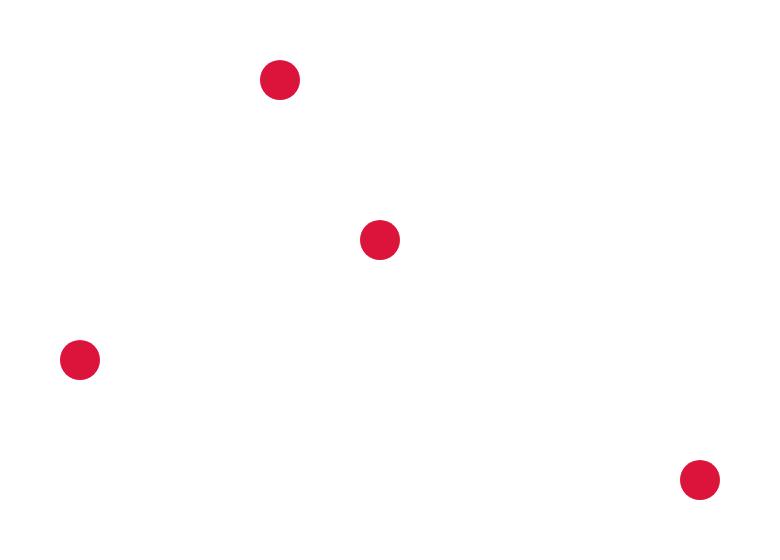

# Click or tap to add a dot. Press c to clear them.
dots = []

def on_mouse_down(x, y):
    dots.append((x, y))

def on_key_down(key):
    if key == "c":
        dots.clear()

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "crimson"
    for x, y in dots:
        ctx.begin_path()
        ctx.arc(x, y, 10, 0, 6.283)
        ctx.fill()

Tap to enlarge

Holding a key down does not repeat on_key_down. Use keys for things that should keep happening while a key is held.

Callbacks

You can pass a Python function anywhere the preview expects one. The function receives the event, and its fields read as attributes: event.x, event.y, event.type, event.key.

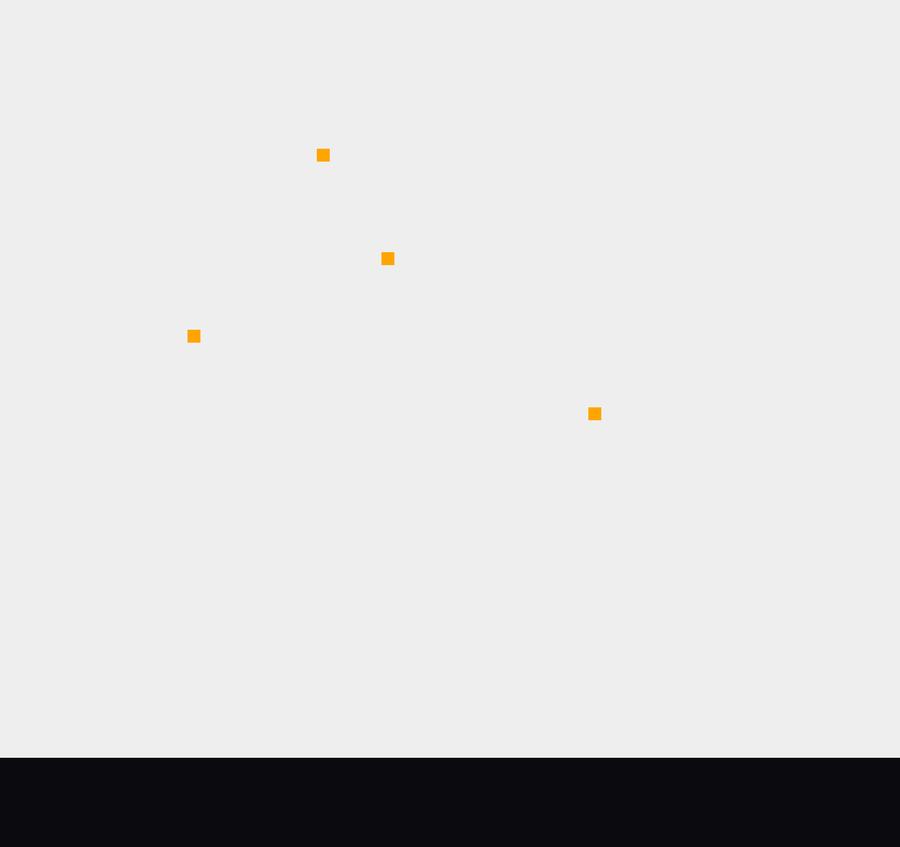

def clicked(event):
    ctx.fill_style = "orange"
    ctx.fill_rect(event.x - 5, event.y - 5, 10, 10)

ctx.fill_style = "#eee"
ctx.fill_rect(0, 0, width, height)
canvas.add_event_listener("click", clicked)

Tap to enlarge

A callback can be async def, so it can await a value (below).

How calls work

The names above reach the preview, and a few rules make them read like ordinary Python:

• snake_case works. ctx.fill_rect is fillRect, ctx.fill_style is fillStyle. The standard names work too, so ctx.fillRect(...) is the same call. This guide uses snake_case for 2D.
• A capitalised name makes something new. THREE.Mesh(geometry, material) creates a new mesh; you never write new.
• Keyword arguments become an options object. THREE.MeshStandardMaterial(color="red", roughness=0.4) passes {color: "red", roughness: 0.4}.
• Python values travel as you would expect. Numbers, strings, True/False/None, lists and dicts all work as arguments, and so do numbers from libraries such as numpy.
• Changing a value in place works. mesh.rotation.y += 0.01 and light.intensity *= 0.9 are worked out in the preview, with no need to read the old value first.

Reading a value back with await

Drawing only sends instructions to the preview, which is why it is fast. Occasionally you need an answer back, such as the width of some text. Put await in front and you get the value:

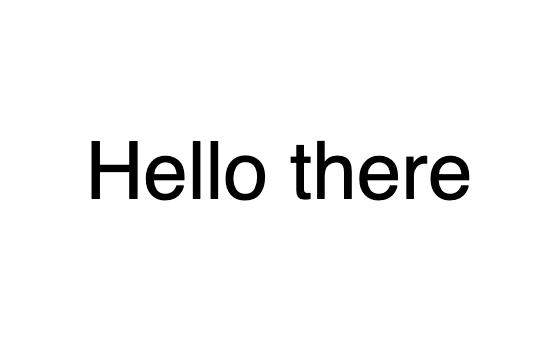

ctx.font = "40px sans-serif"
text_width = await ctx.measure_text("Hello there").width
print("The text is", text_width, "points wide")

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "black"
    ctx.font = "40px sans-serif"
    ctx.fill_text("Hello there", (width - text_width) / 2, height / 2)

Tap to enlarge

Things to know:

• Every read waits a frame, so a program that reads every frame runs at half speed or less. Read rarely: once at the start, or when the user clicks.
• Keep your own numbers in Python. Rather than reading mesh.position.x back, keep x in a Python variable, change it, and set mesh.position.x = x. A value you set from Python is remembered, so reading it back needs no await.
• Using a preview value as if it were a Python number (if mesh.position.x > 3:) stops with an error that says to read it with await.
• To await inside a function, make it async def. draw, update and callbacks can all be async.
