Graphics and Games with Pyctures

Pyctures ("Python pictures") draws 2D and 3D graphics from a Python file. You write a function called draw(), and it is called every frame, about sixty times a second. Change what it draws a little each time and the picture moves. That is how every game works.

Pyctures is a free, open-source library. It is built into Circuitry, and the same programs run with the library on your own computer: see Use your scenes outside Circuitry.

Who this is for

A school or college student who has written a few lines of Python, perhaps with turtle, and wants to make pictures that move and games that answer the keyboard. It also suits a complete beginner who would rather start with a game.

What you need

  • Circuitry in a web browser, in the desktop app, or on an iPad or a phone.
  • Nothing to install. There is no import line to write either.

Your first program

Make a Python file ( → Code → Python) and type or paste this:

x = 0

def update(dt):
    global x
    x += 120 * dt                # 120 points every second
    if x > width + 30:           # off the right edge: back to the left
        x = -30

def draw():
    background("midnightblue")
    circle(width - 90, 90, 45, "gold")              # the moon
    rect(0, height - 70, width, 70, "seagreen")     # the ground
    circle(x, height - 95, 25, "tomato")            # the ball
    text("Hello, Pyctures", 20, 40, "white", 24)

A file that draws starts by itself, about half a second after you stop typing. Run in the footer starts it again, and the same button is Stop while it runs.

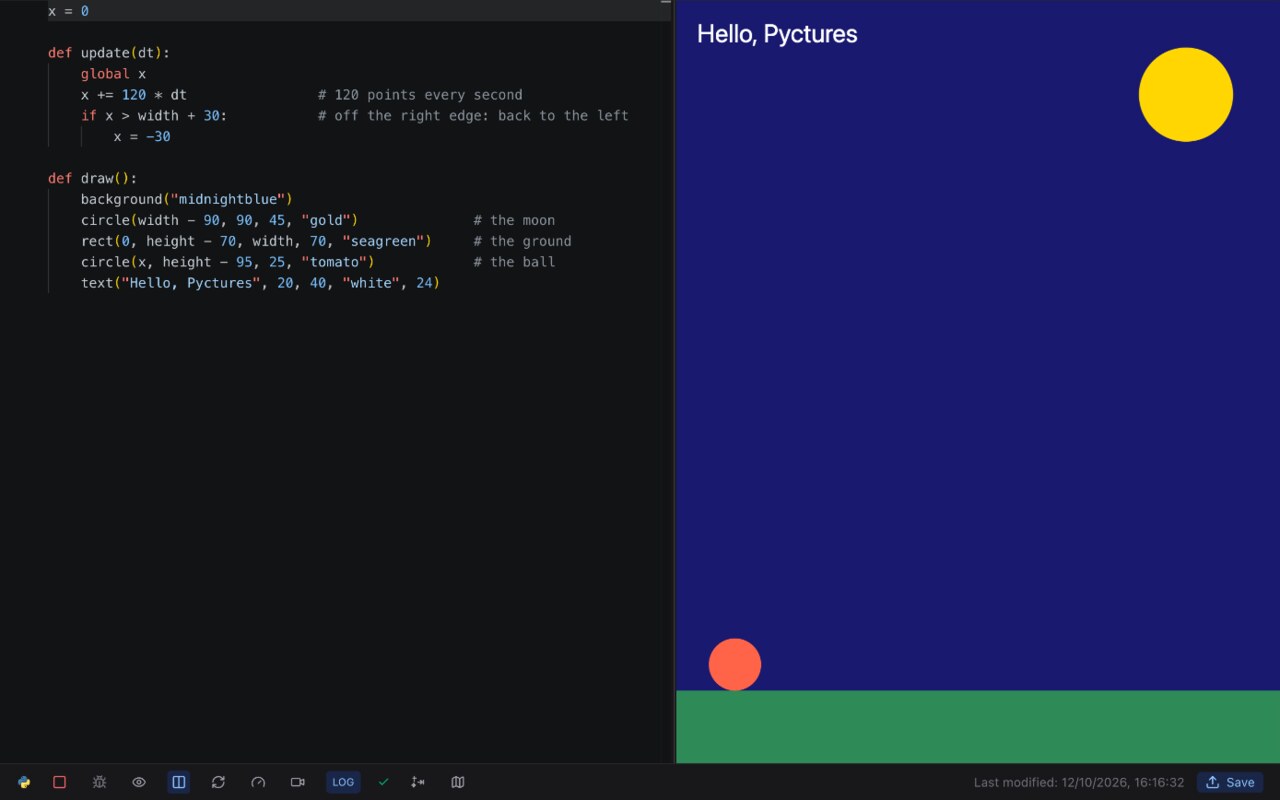

What you should see

A dark blue sky with a gold moon, green ground, the words Hello, Pyctures, and a red ball that rolls along the ground from left to right, then comes round again.

  • draw() paints the whole picture, every frame.
  • update(dt) is called just before it. dt is the time since the last frame, in seconds, so 120 * dt is 120 points a second on every screen.
  • width and height are the size of the preview, so the picture fits whatever shape the preview is.
  • global x lets the function change the x made at the top of the file.

Three things to try

  1. Faster. Change 120 to 400.
  2. Your own colours. Change "gold" to "white" and "midnightblue" to "skyblue". There are about 140 colour names: see Colours.
  3. Steer it. Replace the three lines inside update after global x with these, click the preview so it has the keyboard, and use the arrow keys:
    if "ArrowLeft" in keys: x -= 300 * dt
    if "ArrowRight" in keys: x += 300 * dt

Coming from pygame

Circuitry has no pygame. A program written for it has to be rewritten, and the shape is close: the loop that pygame makes you write is update(dt) and draw() here, the event queue is keys and mouse, and a sprite is a Sprite.
