Tutorial: A Live Chart

Draw charts straight from Python data: first a bar chart from a list, then a line chart that updates as new readings arrive, with gridlines, labels and a readout that follows your finger or mouse. Because you draw every line yourself, the chart can look exactly the way you want.

The idea: data space and screen space

Your data has its own units (degrees, pounds, visitors). The screen has points, with y counting down. A chart is a pair of small functions that turn one into the other:

screen x = left  + (index / (count - 1)) * plot width
screen y = bottom - (value - lowest) / (highest - lowest) * plot height

The minus sign in the second line is what makes bigger values go up.

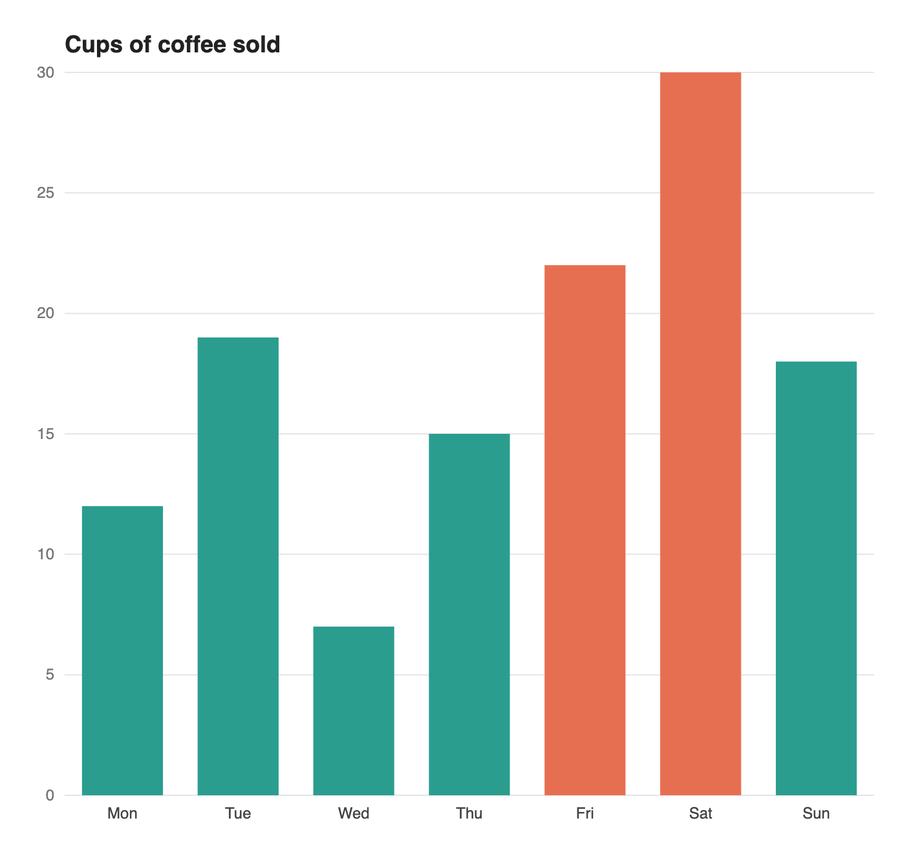

1. A bar chart from a list

sales = {"Mon": 12, "Tue": 19, "Wed": 7, "Thu": 15, "Fri": 22, "Sat": 30, "Sun": 18}

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)

    # the plot area, leaving room for labels
    left, right, top, bottom = 50, width - 20, 56, height - 40
    plot_w, plot_h = right - left, bottom - top
    biggest = max(sales.values())

    # title
    ctx.fill_style = "#222"
    ctx.font = "bold 18px sans-serif"
    ctx.text_align = "left"
    ctx.fill_text("Cups of coffee sold", left, 26)

    # gridlines and their numbers
    ctx.font = "12px sans-serif"
    ctx.text_align = "right"
    ctx.text_baseline = "middle"
    for i in range(0, biggest + 1, 5):
        y = bottom - i / biggest * plot_h
        ctx.stroke_style = "#e5e5e5"
        ctx.line_width = 1
        ctx.begin_path()
        ctx.move_to(left, y)
        ctx.line_to(right, y)
        ctx.stroke()
        ctx.fill_style = "#777"
        ctx.fill_text(str(i), left - 8, y)

    # one bar per day, with its name underneath
    slot = plot_w / len(sales)
    ctx.text_align = "center"
    ctx.text_baseline = "top"
    for n, (day, value) in enumerate(sales.items()):
        bar_h = value / biggest * plot_h
        x = left + n * slot + slot * 0.15
        ctx.fill_style = "#2a9d8f" if value < 20 else "#e76f51"
        ctx.fill_rect(x, bottom - bar_h, slot * 0.7, bar_h)
        ctx.fill_style = "#444"
        ctx.fill_text(day, x + slot * 0.35, bottom + 8)

  • left, right, top and bottom are the edges of the plot area, worked out from width and height every frame, so the chart fills the preview at any size.
  • Each gridline is placed with the same sum as the bars: bottom - value / biggest * plot_h.
  • text_align and text_baseline line the labels up: numbers right-aligned beside the axis, day names centred under their bars.
  • Bars of 20 or more are drawn in a second colour. Change the data and run again.

2. A live line chart

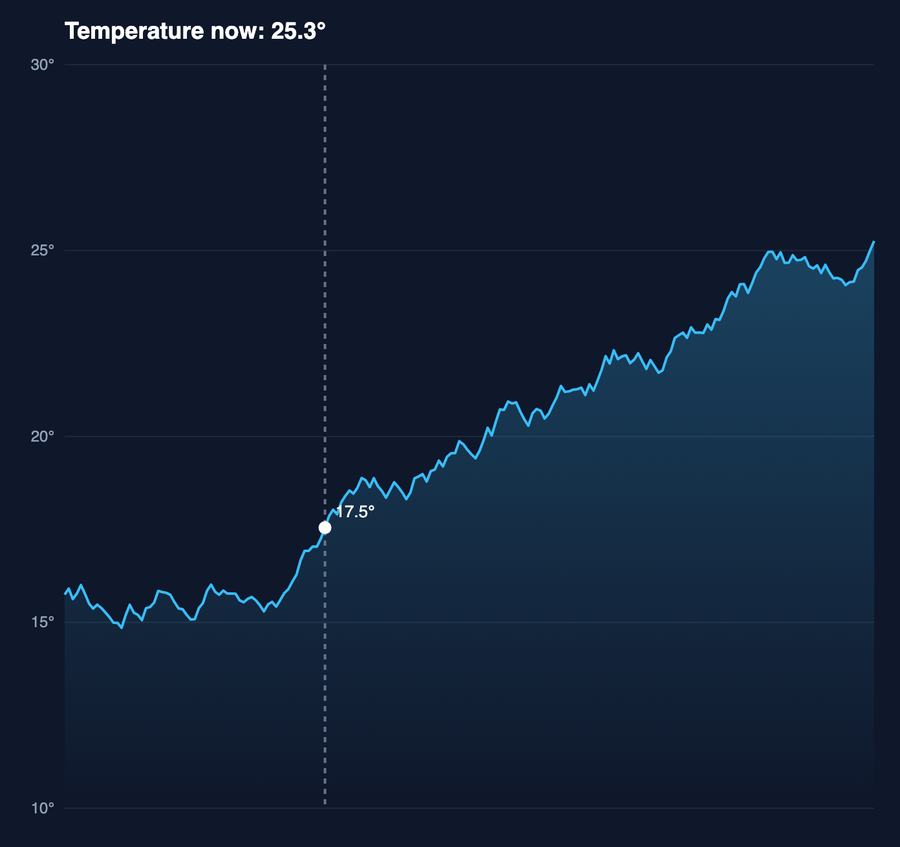

Now the data changes while you watch. Each frame update adds a new reading and drops the oldest, and draw plots whatever is in the list. Move the mouse over the chart, or touch it, to read off a value.

import math, random

readings = []          # the last 200 readings
t = 0.0
temperature = 20.0

def update(dt):
    global t, temperature
    t += dt
    # a made-up sensor: a slow daily swing plus some noise
    temperature += (20 + 5 * math.sin(t * 0.8) - temperature) * 0.05 + random.uniform(-0.3, 0.3)
    readings.append(temperature)
    if len(readings) > 200:
        readings.pop(0)

def draw():
    ctx.fill_style = "#0f172a"
    ctx.fill_rect(0, 0, width, height)
    if len(readings) < 2:
        return

    left, right, top, bottom = 50, width - 20, 50, height - 30
    plot_w, plot_h = right - left, bottom - top
    low, high = 10, 30                        # the range the chart shows

    def sx(i):                                 # reading number -> screen x
        return left + i / (len(readings) - 1) * plot_w

    def sy(v):                                 # temperature -> screen y
        return bottom - (v - low) / (high - low) * plot_h

    # gridlines every 5 degrees
    ctx.font = "12px sans-serif"
    ctx.text_align = "right"
    ctx.text_baseline = "middle"
    ctx.line_width = 1
    for v in range(low, high + 1, 5):
        ctx.stroke_style = "#1e293b"
        ctx.begin_path()
        ctx.move_to(left, sy(v))
        ctx.line_to(right, sy(v))
        ctx.stroke()
        ctx.fill_style = "#94a3b8"
        ctx.fill_text(f"{v}°", left - 8, sy(v))

    # the shaded area under the line
    ctx.begin_path()
    ctx.move_to(sx(0), bottom)
    for i, v in enumerate(readings):
        ctx.line_to(sx(i), sy(v))
    ctx.line_to(sx(len(readings) - 1), bottom)
    ctx.close_path()
    shade = ctx.create_linear_gradient(0, top, 0, bottom)
    shade.add_color_stop(0, "rgba(56, 189, 248, 0.35)")
    shade.add_color_stop(1, "rgba(56, 189, 248, 0)")
    ctx.fill_style = shade
    ctx.fill()

    # the line itself
    ctx.begin_path()
    for i, v in enumerate(readings):
        if i == 0:
            ctx.move_to(sx(i), sy(v))
        else:
            ctx.line_to(sx(i), sy(v))
    ctx.stroke_style = "#38bdf8"
    ctx.line_width = 2
    ctx.line_join = "round"
    ctx.stroke()

    # title and the latest value
    ctx.text_align = "left"
    ctx.text_baseline = "alphabetic"
    ctx.fill_style = "white"
    ctx.font = "bold 18px sans-serif"
    ctx.fill_text(f"Temperature now: {readings[-1]:.1f}°", left, 30)

    # a readout where the pointer is
    if left <= mouse.x <= right:
        i = round((mouse.x - left) / plot_w * (len(readings) - 1))
        i = min(max(i, 0), len(readings) - 1)
        x, y = sx(i), sy(readings[i])
        ctx.stroke_style = "#64748b"
        ctx.set_line_dash([4, 4])
        ctx.begin_path()
        ctx.move_to(x, top)
        ctx.line_to(x, bottom)
        ctx.stroke()
        ctx.set_line_dash([])
        ctx.fill_style = "white"
        ctx.begin_path()
        ctx.arc(x, y, 5, 0, math.tau)
        ctx.fill()
        ctx.font = "13px sans-serif"
        ctx.fill_text(f"{readings[i]:.1f}°", x + 8, y - 8)

What to notice:

  • sx and sy are the two small functions from the top of the page. Every point on the chart goes through them, so changing low and high rescales everything at once.
  • The shaded area is the same path as the line, closed down to the bottom edge and filled with a gradient that fades out.
  • The readout uses mouse.x, which follows a finger on a touch screen too, to find the nearest reading.
  • The chart is drawn from scratch every frame, which is plenty fast for hundreds of points.

Your own data

Anything Python can produce can be charted this way: a list you typed in, numbers worked out in a loop, or results from numpy. To chart a fixed list, put it in place of readings and leave out update. To make it scale itself, use low, high = min(readings), max(readings) in place of fixed numbers, adding a little margin so the line does not touch the edges.

Try this

  • Draw dots on the bar chart's values, or a line joining the tops of the bars.
  • Plot two series in different colours, with a small key in a corner.
  • Make the bar chart grow: keep a grow number that update takes from 0 to 1, and multiply every bar_h by it.
