Tutorial: Your First Drawing

In this tutorial you draw a house on a hill, with the sun in the sky, using a rectangle, a triangle, some circles and a line of text. It takes about ten minutes and needs no Python beyond the basics.

1. Make the file

From the new-document menu (+), choose Code, then Python, and call the file house.py. It opens split, with the code on the left and the preview on the right.

2. Paint the sky

Type this and press Run:

def draw():
    ctx.fill_style = "lightskyblue"
    ctx.fill_rect(0, 0, width, height)

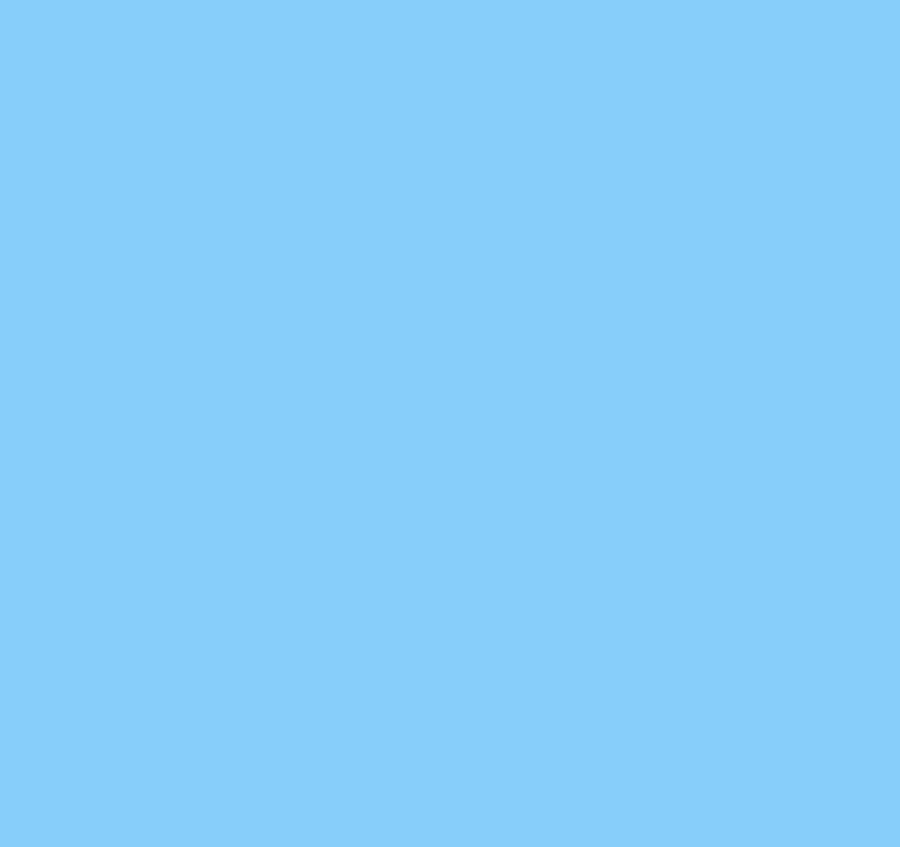

The preview turns blue.

  • def draw(): is a function the preview calls every frame. Anything inside it is drawn again and again, so your picture stays put even when the preview changes size.
  • ctx is the drawing surface. fill_style picks a colour and fill_rect(x, y, w, h) fills a rectangle.
  • (0, 0) is the top-left corner, and width and height are the size of the preview, so this rectangle covers everything.

Press Stop when you want to stop the program; press Run again after each change.

3. Add the ground

Add these lines inside draw(), under the sky. Keep the four spaces at the start of each line: they are what put a line inside the function.

def draw():
    ctx.fill_style = "lightskyblue"
    ctx.fill_rect(0, 0, width, height)

    ground = height * 0.7
    ctx.fill_style = "yellowgreen"
    ctx.fill_rect(0, ground, width, height - ground)

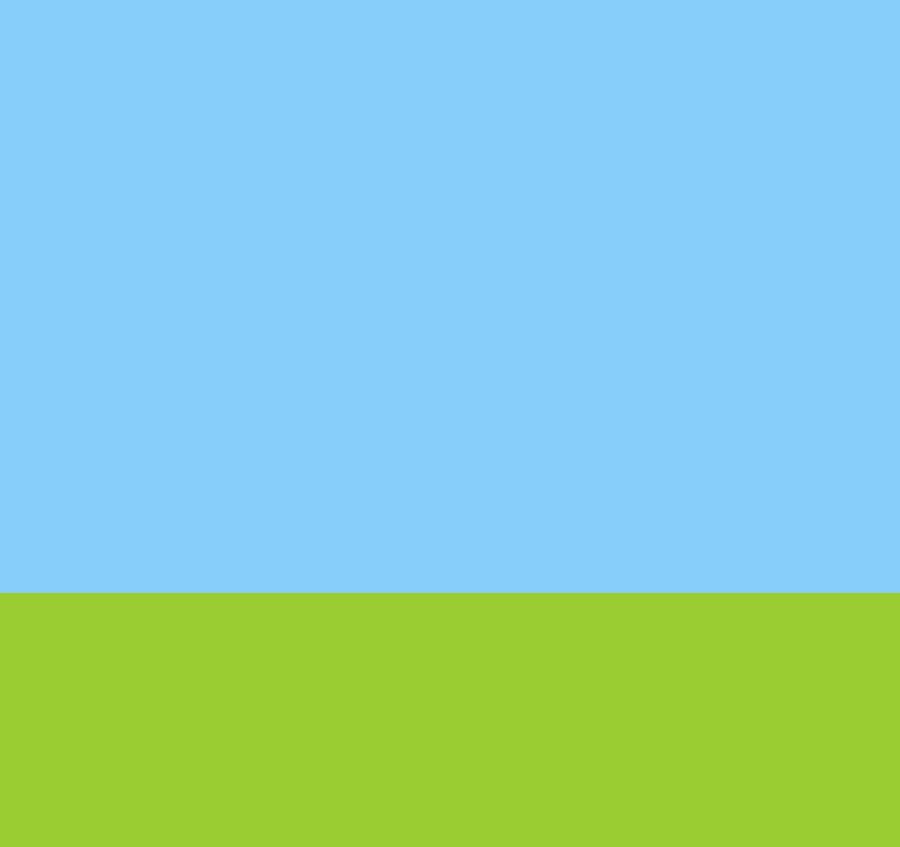

y counts down from the top, so height * 0.7 is 70% of the way down. The green rectangle starts there and fills the rest.

4. The whole picture

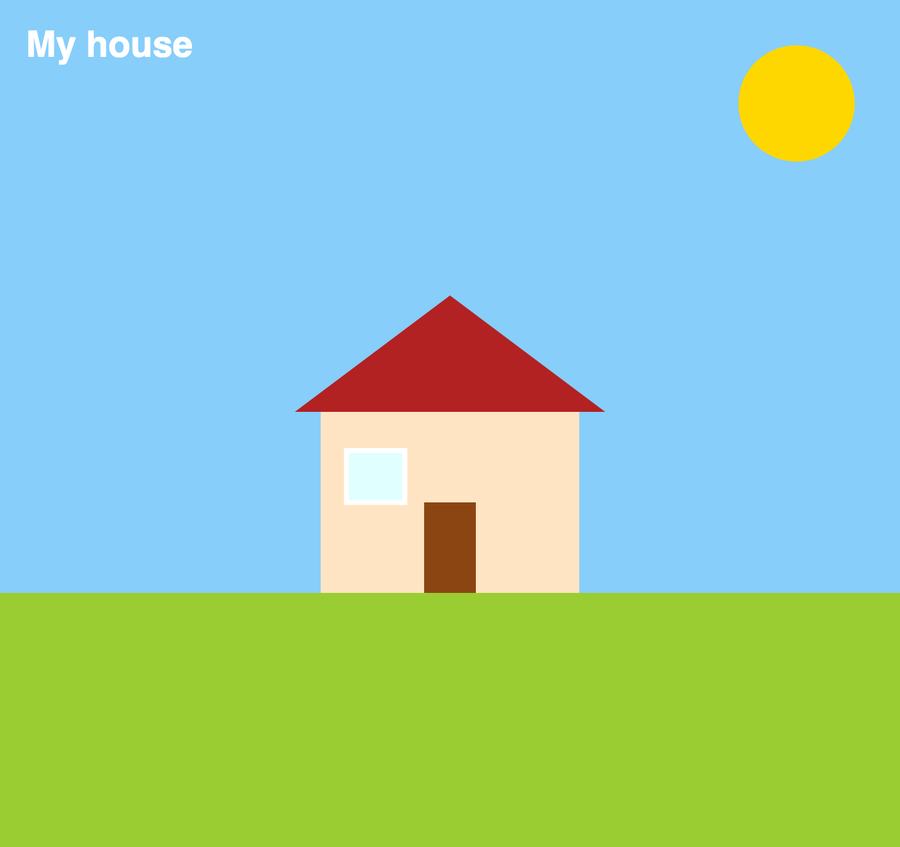

Here is the finished drawing. Read the comments to see which lines draw what, then run it.

import math

def draw():
    # sky and ground
    ctx.fill_style = "lightskyblue"
    ctx.fill_rect(0, 0, width, height)
    ground = height * 0.7
    ctx.fill_style = "yellowgreen"
    ctx.fill_rect(0, ground, width, height - ground)

    # the sun: a circle is an arc that goes all the way round
    ctx.fill_style = "gold"
    ctx.begin_path()
    ctx.arc(width - 80, 80, 45, 0, math.tau)
    ctx.fill()

    # the house
    x = width / 2 - 100        # left edge of the house
    w, h = 200, 140            # its width and height
    top = ground - h           # its top edge
    ctx.fill_style = "bisque"
    ctx.fill_rect(x, top, w, h)

    # the roof: a triangle is a path of three lines
    ctx.fill_style = "firebrick"
    ctx.begin_path()
    ctx.move_to(x - 20, top)
    ctx.line_to(x + w / 2, top - 90)
    ctx.line_to(x + w + 20, top)
    ctx.close_path()
    ctx.fill()

    # the door and a window, with outlines
    ctx.fill_style = "saddlebrown"
    ctx.fill_rect(x + 80, ground - 70, 40, 70)
    ctx.fill_style = "lightcyan"
    ctx.fill_rect(x + 20, top + 30, 45, 40)
    ctx.stroke_style = "white"
    ctx.line_width = 4
    ctx.stroke_rect(x + 20, top + 30, 45, 40)

    # a name for the picture
    ctx.fill_style = "white"
    ctx.font = "bold 28px sans-serif"
    ctx.fill_text("My house", 20, 44)

The house is placed with x, w, h and top, and everything else is worked out from them. Change w, h = 200, 140 to w, h = 260, 100 and the whole house, roof and door included, changes with it.

Try this

  • Change the colours. Any colour name works, or a code such as "#ff8800".
  • Add a cloud: three white circles that overlap.
  • Make it night: a dark blue sky, a pale moon instead of the sun, and "yellow" windows.
  • Make the sun move: add t = 0 above draw(), an update(dt) function that does global t and t += dt, and draw the sun at 80 + t * 20 across.
