3D Functions
Python 3D has the full three.js toolkit, with the same names as in JavaScript, so three.js examples written in JavaScript carry straight across (how). For raw GPU work with your own shaders, see GPU: WebGL and WebGPU.
The 3D parts you can use from Python, grouped by job, one line each, with pictures of what they look like. THREE is the full three.js 3D toolkit, so everything in its documentation works; this page covers the parts used most. For the rest, see threejs.org/docs.
New to 3D? Start with 3D scenes and the spinning cube tutorial, and come back here to look things up.
Writing three.js in Python. A capitalised name makes something new: THREE.Mesh(...), never new. Options are keyword arguments: THREE.MeshStandardMaterial(color="red", roughness=0.4). Values change in place: mesh.rotation.y += 0.01. snake_case works (set_pixel_ratio), but this page uses three.js's own names so they match its documentation. Reading a value that three.js worked out needs await (see reading a value back).
Renderer
The renderer draws the scene onto the preview. Start every 3D program with the first three lines.
| Python | What it does |
|---|---|
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True) | Makes a renderer that draws on the preview, with smooth edges |
renderer.setPixelRatio(pixel_ratio) | Sharp on high-resolution screens |
renderer.setSize(width, height, False) | Fits the preview. Done again for you whenever the preview is resized. |
renderer.render(scene, camera) | Draws one picture; call it in draw() |
renderer.setClearColor("navy", 1) | The colour behind the scene when it has no background; the second number is how solid |
renderer.shadowMap.enabled = True | Turns shadows on (Lights) |
renderer.shadowMap.type = THREE.PCFSoftShadowMap | Soft-edged shadows. Also BasicShadowMap (hard, fastest), PCFShadowMap (the default), VSMShadowMap. |
renderer.toneMapping = THREE.ACESFilmicToneMapping | Softens very bright light the way a film camera does. Also NoToneMapping (the default), LinearToneMapping, ReinhardToneMapping, AgXToneMapping, NeutralToneMapping. |
renderer.toneMappingExposure = 1.2 | Overall brightness when tone mapping is on |
renderer.outputColorSpace = THREE.SRGBColorSpace | How colours are sent to the screen. This is already the default; leave it unless you know you need LinearSRGBColorSpace. |
Scene and fog
| Python | What it does |
|---|---|
scene = THREE.Scene() | The world everything goes in |
scene.add(thing), scene.remove(thing) | Puts something in the world, or takes it out |
scene.background = THREE.Color("skyblue") | The colour behind everything. A texture works too. |
scene.fog = THREE.Fog("white", near, far) | Fog that starts at distance near and hides everything by far. Use the background colour for the fog colour. |
scene.fog = THREE.FogExp2("white", 0.05) | Fog that thickens steadily with distance; the number is how thick |
Cameras
| Python | What it does |
|---|---|
THREE.PerspectiveCamera(fov, width / height, near, far) | A camera that sees the way eyes do: far things look smaller. fov is how wide it sees, in degrees (50 to 75 is usual); it sees from near to far. |
THREE.OrthographicCamera(left, right, top, bottom, near, far) | A camera with no perspective: far things look the same size. Good for plans, maps and some games. It is not refitted on resize; set its sides from width and height yourself. |
camera.position.set(x, y, z) | Where the camera is |
camera.lookAt(x, y, z) | Points it at a spot |
camera.fov = 30, camera.near, camera.far, camera.zoom = 2 | Change its settings; follow with camera.updateProjectionMatrix() |
camera.updateProjectionMatrix() | Applies changed camera settings |
Perspective cameras are refitted to the preview's shape for you when it is resized.
Geometries: boxes, spheres, cylinders and every other shape
A geometry is a shape. Put it in a THREE.Mesh with a material to see it. Sizes are in scene units; the optional numbers at the end (segments) say how smooth curved surfaces are.
| Python | Shape |
|---|---|
THREE.BoxGeometry(w, h, d) | A box |
THREE.SphereGeometry(radius, 32, 16) | A ball |
THREE.PlaneGeometry(w, h) | A flat rectangle, facing you. Turn it flat with mesh.rotation.x = -math.pi / 2 for a floor. |
THREE.CircleGeometry(radius, 32) | A flat disc |
THREE.RingGeometry(inner, outer, 32) | A flat ring, like a washer |
THREE.CylinderGeometry(top_radius, bottom_radius, height, 32) | A cylinder; different radii make a tapered tube |
THREE.ConeGeometry(radius, height, 32) | A cone |
THREE.CapsuleGeometry(radius, length, 8, 16) | A pill |
THREE.TorusGeometry(radius, tube, 16, 64) | A ring doughnut |
THREE.TorusKnotGeometry(radius, tube, 128, 16) | A knotted tube |
THREE.TetrahedronGeometry(radius) | 4 faces |
THREE.OctahedronGeometry(radius) | 8 faces |
THREE.DodecahedronGeometry(radius) | 12 faces |
THREE.IcosahedronGeometry(radius, detail) | 20 faces; raise detail to make it rounder |
THREE.LatheGeometry(points, 32) | Spins a side outline (a list of THREE.Vector2) round the up axis, like a vase on a potter's wheel |
THREE.ExtrudeGeometry(shape, depth=0.5, bevelEnabled=False) | Pushes a flat THREE.Shape out into a solid, like a cookie cutter |
THREE.TubeGeometry(curve, 64, radius, 8, False) | A tube along a curve, such as THREE.CatmullRomCurve3([...points]) |
THREE.EdgesGeometry(geometry) | Just the edges of another shape, for LineSegments |
THREE.WireframeGeometry(geometry) | Every triangle's edges, for LineSegments |
THREE.BufferGeometry() | Your own shape from numbers: geometry.setAttribute("position", THREE.Float32BufferAttribute(numbers, 3)), three numbers per corner |
A THREE.Shape() is drawn like a 2D path: shape.moveTo(x, y), shape.lineTo(x, y), shape.quadraticCurveTo(...), shape.bezierCurveTo(...), shape.absarc(x, y, r, start, end), shape.closePath().
import math
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
scene = THREE.Scene()
scene.background = THREE.Color("#15151c")
camera = THREE.PerspectiveCamera(40, width / height, 0.1, 100)
camera.position.set(0, 0, 18)
scene.add(THREE.HemisphereLight("white", "#334", 1.5))
sun = THREE.DirectionalLight("white", 2)
sun.position.set(3, 5, 6)
scene.add(sun)
# a star outline, for ExtrudeGeometry
star = THREE.Shape()
for i in range(10):
r = 0.7 if i % 2 == 0 else 0.3
a = i * math.pi / 5 + math.pi / 2
if i == 0:
star.moveTo(r * math.cos(a), r * math.sin(a))
else:
star.lineTo(r * math.cos(a), r * math.sin(a))
star.closePath()
# a vase outline, for LatheGeometry
vase = [THREE.Vector2(0.25 + 0.3 * math.sin(i / 2.5), i * 0.14 - 0.7) for i in range(11)]
# a wiggly path, for TubeGeometry
path = THREE.CatmullRomCurve3([THREE.Vector3(-0.7, -0.5, 0), THREE.Vector3(-0.3, 0.6, 0.3),
THREE.Vector3(0.3, -0.6, -0.3), THREE.Vector3(0.7, 0.5, 0)])
shapes = [
THREE.BoxGeometry(1.1, 1.1, 1.1),
THREE.SphereGeometry(0.7, 32, 16),
THREE.PlaneGeometry(1.3, 1.3),
THREE.CircleGeometry(0.7, 32),
THREE.RingGeometry(0.35, 0.7, 32),
THREE.CylinderGeometry(0.5, 0.5, 1.3, 32),
THREE.ConeGeometry(0.6, 1.3, 32),
THREE.CapsuleGeometry(0.4, 0.6, 8, 16),
THREE.TorusGeometry(0.5, 0.2, 16, 48),
THREE.TorusKnotGeometry(0.45, 0.14, 100, 16),
THREE.TetrahedronGeometry(0.8),
THREE.OctahedronGeometry(0.75),
THREE.DodecahedronGeometry(0.7),
THREE.IcosahedronGeometry(0.7),
THREE.LatheGeometry(vase, 32),
THREE.ExtrudeGeometry(star, depth=0.3, bevelEnabled=False),
THREE.TubeGeometry(path, 64, 0.12, 8, False),
]
meshes = []
for i, geometry in enumerate(shapes):
mesh = THREE.Mesh(geometry, THREE.MeshStandardMaterial(
color=f"hsl({i * 21}, 70%, 60%)", roughness=0.5, side=THREE.DoubleSide))
mesh.position.set((i % 6 - 2.5) * 2.1, 2.3 - (i // 6) * 2.3, 0)
scene.add(mesh)
meshes.append(mesh)
# EdgesGeometry and WireframeGeometry draw lines, not surfaces
box = THREE.BoxGeometry(1.1, 1.1, 1.1)
edges = THREE.LineSegments(THREE.EdgesGeometry(box), THREE.LineBasicMaterial(color="white"))
edges.position.set(2.5 * 2.1, -2.3, 0)
scene.add(edges)
meshes.append(edges)
t = 0
def update(dt):
global t
t += dt
def draw():
for m in meshes:
m.rotation.x = 0.5
m.rotation.y = 0.6 + 0.4 * math.sin(t) # rock gently, so flat shapes stay in view
renderer.render(scene, camera)

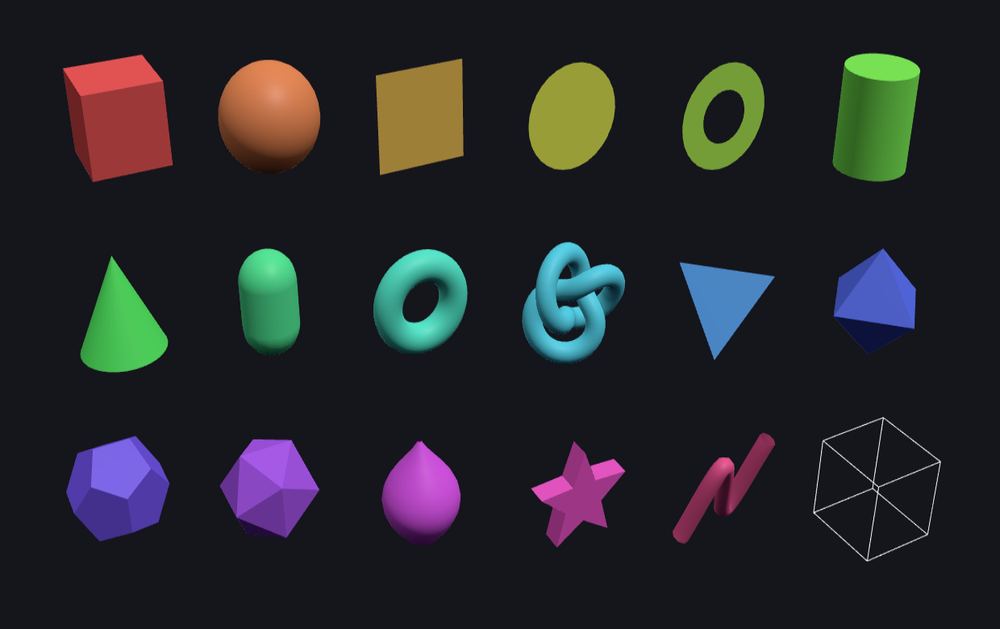

From the top left: box, sphere, plane, circle, ring, cylinder; cone, capsule, torus, torus knot, tetrahedron, octahedron; dodecahedron, icosahedron, lathe, extrude, tube and edges.
Materials: how surfaces look, from matte to metal, glass, toon and wireframe
| Python | Looks |
|---|---|
THREE.MeshBasicMaterial(color=…) | Flat colour, ignores light, always visible |
THREE.MeshLambertMaterial(color=…) | Matte, like chalk or paper |
THREE.MeshPhongMaterial(color=…, shininess=80, specular="white") | Shiny highlights, like plastic |
THREE.MeshStandardMaterial(color=…, roughness=0.5, metalness=0) | Realistic. roughness 0 is polished, 1 is rough; metalness 1 is metal. |
THREE.MeshPhysicalMaterial(color=…, clearcoat=1, transmission=0.9, thickness=0.5) | Standard, plus extras: clearcoat (a varnish layer), transmission (glass that lets light through), sheen (cloth), iridescence (soap-bubble colours) |
THREE.MeshToonMaterial(color=…) | Cartoon shading in a few flat bands |
THREE.MeshNormalMaterial() | Rainbow colours by which way each face points; needs no light |
THREE.MeshDepthMaterial() | White near the camera, fading to black far away |
THREE.LineBasicMaterial(color=…) | For lines (Line, LineSegments, LineLoop) |
THREE.LineDashedMaterial(color=…, dashSize=0.2, gapSize=0.1) | Dashed lines; call line.computeLineDistances() once |
THREE.PointsMaterial(color=…, size=0.05) | For Points |
THREE.SpriteMaterial(map=texture) | For Sprite, a picture that always faces the camera |
Options most materials take:
| Option | What it does |
|---|---|
color="tomato" | The surface colour (Colours) |
emissive="orange", emissiveIntensity=1 | A glow the surface gives off by itself |
map=texture | A picture wrapped round the surface (Textures) |
roughness, metalness | Standard and Physical only: rough or polished, metal or not |
wireframe=True | Draws the edges of every triangle only |
flatShading=True | Shows the flat faces rather than smoothing over them |
side=THREE.DoubleSide | Shows both sides of flat shapes (FrontSide is the default, BackSide the inside) |
transparent=True, opacity=0.5 | See-through; opacity does nothing without transparent |
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
scene = THREE.Scene()
scene.background = THREE.Color("#20232b")
camera = THREE.PerspectiveCamera(40, width / height, 0.1, 100)
camera.position.set(0, 0, 14)
scene.add(THREE.AmbientLight("white", 0.3))
sun = THREE.DirectionalLight("white", 2.5)
sun.position.set(-3, 4, 5)
scene.add(sun)
materials = [
THREE.MeshBasicMaterial(color="tomato"),
THREE.MeshLambertMaterial(color="tomato"),
THREE.MeshPhongMaterial(color="tomato", shininess=100),
THREE.MeshStandardMaterial(color="tomato", roughness=0.3),
THREE.MeshStandardMaterial(color="gold", roughness=0.3, metalness=0.6),
THREE.MeshPhysicalMaterial(color="tomato", roughness=0.4, clearcoat=1),
THREE.MeshToonMaterial(color="tomato"),
THREE.MeshNormalMaterial(),
THREE.MeshStandardMaterial(color="tomato", wireframe=True),
THREE.MeshStandardMaterial(color="tomato", flatShading=True),
THREE.MeshStandardMaterial(color="#311", emissive="orange", emissiveIntensity=0.8),
THREE.MeshStandardMaterial(color="deepskyblue", transparent=True, opacity=0.4),
]
balls = []
for i, material in enumerate(materials):
ball = THREE.Mesh(THREE.SphereGeometry(0.8, 32, 16), material)
ball.position.set((i % 4 - 1.5) * 2.1, 2.3 - (i // 4) * 2.3, 0)
scene.add(ball)
balls.append(ball)
def draw():
for b in balls:
b.rotation.y += 0.01
renderer.render(scene, camera)

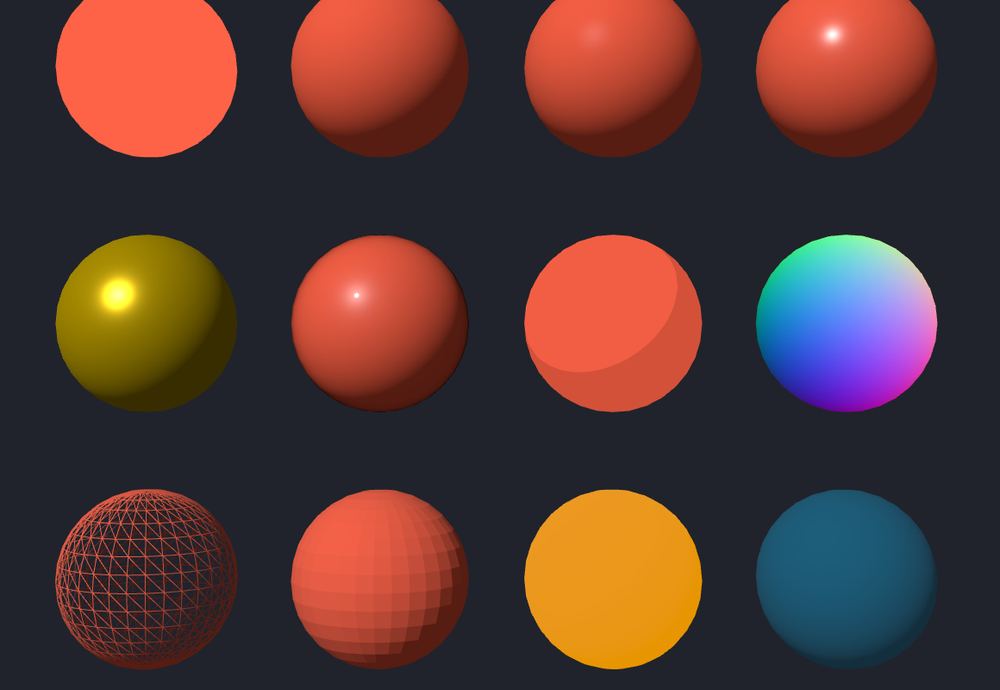

Top row: basic, Lambert, Phong, standard. Middle row: standard with some metalness, physical with clearcoat, toon, normal. Bottom row: wireframe, flat shading, emissive, see-through. Shiny metal reflects its surroundings, so in a scene with nothing round it, full metalness looks dark.
Lights
| Python | What it is |
|---|---|
THREE.AmbientLight(colour, intensity) | A little light everywhere, from no direction |
THREE.HemisphereLight(sky, ground, intensity) | Sky colour from above, ground colour from below |
THREE.DirectionalLight(colour, intensity) | The sun: parallel light from position towards target (the middle unless you move it) |
THREE.PointLight(colour, intensity, distance, decay) | A bulb: light in every direction from one spot. distance 0 means no cut-off; decay 2 is natural fading. |
THREE.SpotLight(colour, intensity, distance, angle, penumbra, decay) | A torch: a cone of light from position towards target. angle is how wide in radians; penumbra 0 to 1 how soft the edge is. |
THREE.RectAreaLight(colour, intensity, w, h) | A glowing panel, like a window or a softbox. Lights only Standard and Physical materials, and casts no shadows. Point it with light.lookAt(x, y, z). |
Settings lights share:
| Python | What it does |
|---|---|
light.intensity = 2 | Brightness |
light.color.set("orange") | Colour |
light.position.set(x, y, z) | Where it is |
light.target.position.set(x, y, z) | Where directional and spot lights point; also scene.add(light.target) |
light.visible = False | Switches it off |
light.castShadow = True | Directional, point and spot lights can cast shadows (turn on renderer.shadowMap.enabled and set castShadow/receiveShadow on objects) |
light.shadow.mapSize.width = 2048 (and .height) | Sharper shadows, at a cost in speed |
light.shadow.bias = -0.0005 | Removes stripy marks on surfaces that shadow themselves |
light.shadow.radius = 4 | Blurs shadow edges (with PCFSoftShadowMap off, PCFShadowMap on) |
light.shadow.camera.left / right / top / bottom | How big an area a directional light's shadows cover |

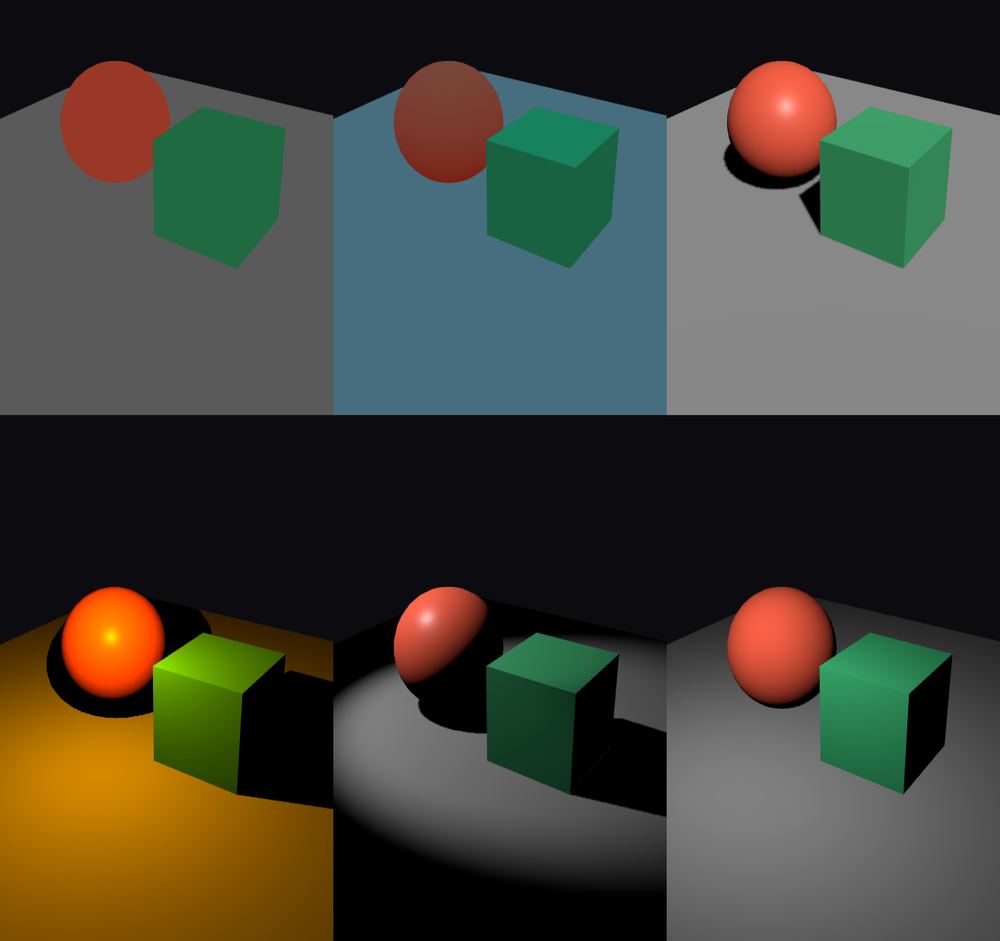

The lighting tutorial explains each light and shadows step by step. This program shows each light on its own, in six small views of the same scene:
import math
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
renderer.shadowMap.enabled = True
renderer.setScissorTest(True) # lets us draw into one part of the preview at a time
camera = THREE.PerspectiveCamera(45, 1, 0.1, 100)
camera.position.set(4, 4, 6)
camera.lookAt(0, 0.6, 0)
def make_scene(light, name):
scene = THREE.Scene()
scene.background = THREE.Color("#0c0c10")
floor = THREE.Mesh(THREE.PlaneGeometry(8, 8), THREE.MeshStandardMaterial(color="#999"))
floor.rotation.x = -math.pi / 2
floor.receiveShadow = True
scene.add(floor)
ball = THREE.Mesh(THREE.SphereGeometry(0.8, 32, 16), THREE.MeshStandardMaterial(color="tomato", roughness=0.4))
ball.position.set(-0.9, 0.8, 0)
box = THREE.Mesh(THREE.BoxGeometry(1.2, 1.2, 1.2), THREE.MeshStandardMaterial(color="mediumseagreen"))
box.position.set(1, 0.6, 0.3)
for thing in (ball, box):
thing.castShadow = True
scene.add(thing)
scene.add(light)
return scene, name
sun = THREE.DirectionalLight("white", 3)
sun.position.set(4, 6, 3)
sun.castShadow = True
bulb = THREE.PointLight("orange", 30, 0)
bulb.position.set(0, 2.2, 1.5)
bulb.castShadow = True
spot = THREE.SpotLight("white", 60, 0, 0.45, 0.4)
spot.position.set(-3, 5, 2)
spot.castShadow = True
panel = THREE.RectAreaLight("white", 6, 3, 1.5)
panel.position.set(0, 3, 2.5)
panel.lookAt(0, 0, 0)
views = [
make_scene(THREE.AmbientLight("white", 1), "AmbientLight"),
make_scene(THREE.HemisphereLight("skyblue", "saddlebrown", 2.5), "HemisphereLight"),
make_scene(sun, "DirectionalLight"),
make_scene(bulb, "PointLight"),
make_scene(spot, "SpotLight"),
make_scene(panel, "RectAreaLight"),
]
def draw():
w, h = width / 3, height / 2
camera.aspect = w / h
camera.updateProjectionMatrix()
for i, (scene, name) in enumerate(views):
x, y = (i % 3) * w, (1 - i // 3) * h # y counts up from the bottom here
renderer.setViewport(x, y, w, h)
renderer.setScissor(x, y, w, h)
renderer.render(scene, camera)
Top row: ambient, hemisphere, directional. Bottom row: point, spot, rectangle area.
Objects
| Python | What it is |
|---|---|
THREE.Mesh(geometry, material) | A solid object |
THREE.Group() | An empty holder: things added to it move, turn and scale with it |
THREE.Points(geometry, THREE.PointsMaterial(size=0.05)) | A dot at every position in the geometry |
THREE.Line(geometry, material) | A line through the positions, in order |
THREE.LineLoop(geometry, material) | The same, joined back to the start |
THREE.LineSegments(geometry, material) | Separate lines, one for each pair of positions |
THREE.Sprite(THREE.SpriteMaterial(map=texture)) | A flat picture that always faces the camera, for labels and particles |
THREE.InstancedMesh(geometry, material, count) | Many copies of one mesh drawn at once, much faster than many meshes. Place each with mesh.setMatrixAt(i, matrix), then set mesh.instanceMatrix.needsUpdate = True. Colour each with mesh.setColorAt(i, THREE.Color(...)). |
A geometry for lines and points is made from a list of positions: THREE.BufferGeometry().setFromPoints([THREE.Vector3(0, 0, 0), THREE.Vector3(1, 1, 0)]).
import math, random
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
scene = THREE.Scene()
scene.background = THREE.Color("#101018")
camera = THREE.PerspectiveCamera(50, width / height, 0.1, 100)
camera.position.set(0, 5, 11)
camera.lookAt(0, 0, 0)
scene.add(THREE.HemisphereLight("white", "#223", 2))

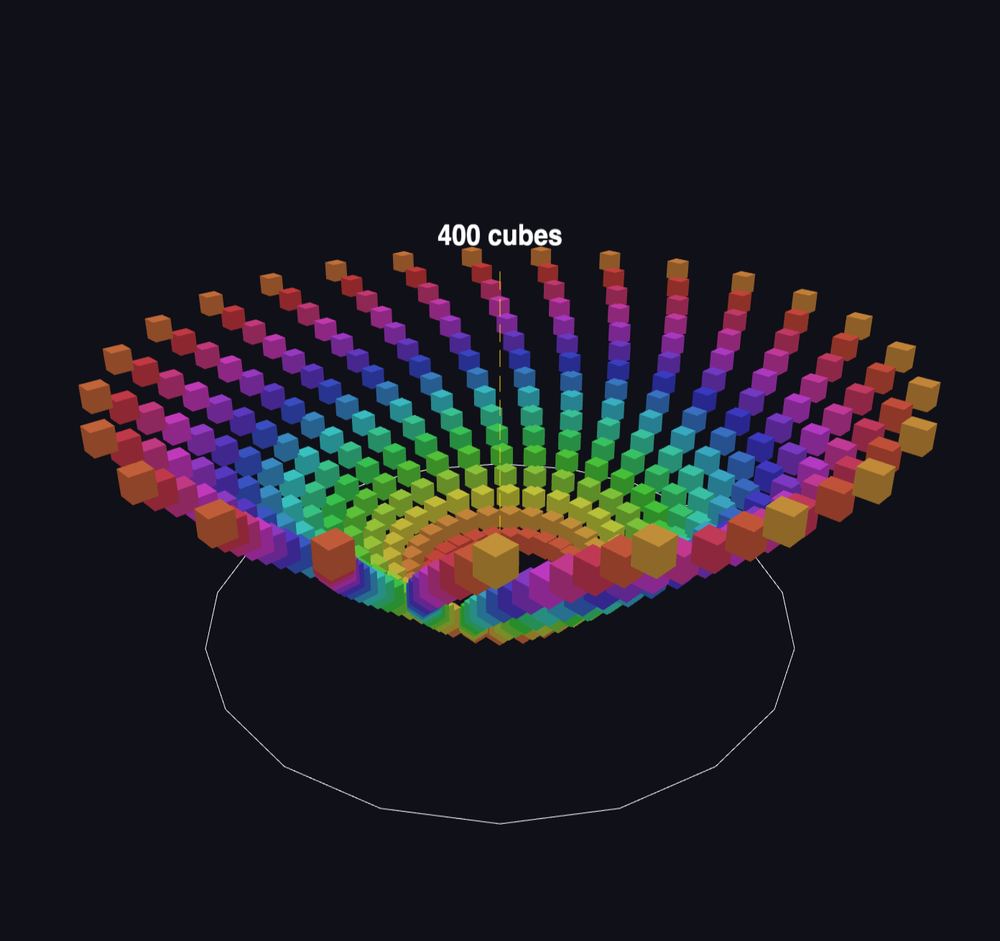

# 400 cubes in one InstancedMesh
count = 400
cubes = THREE.InstancedMesh(THREE.BoxGeometry(0.25, 0.25, 0.25), THREE.MeshStandardMaterial(), count)
place = THREE.Matrix4()
for i in range(count):
a = i * 0.25
r = 1 + i * 0.01
place.setPosition(r * math.cos(a), i * 0.008 - 1.6, r * math.sin(a))
cubes.setMatrixAt(i, place)
cubes.setColorAt(i, THREE.Color(f"hsl({i}, 80%, 60%)"))
cubes.instanceMatrix.needsUpdate = True
scene.add(cubes)
# a circle as a LineLoop, and a dashed line
circle = [THREE.Vector3(4 * math.cos(a / 20 * math.tau), -1.7, 4 * math.sin(a / 20 * math.tau)) for a in range(20)]
scene.add(THREE.LineLoop(THREE.BufferGeometry().setFromPoints(circle), THREE.LineBasicMaterial(color="white")))
dashed = THREE.Line(THREE.BufferGeometry().setFromPoints([THREE.Vector3(0, -1.7, 0), THREE.Vector3(0, 2.5, 0)]),
THREE.LineDashedMaterial(color="gold", dashSize=0.2, gapSize=0.1))
dashed.computeLineDistances()
scene.add(dashed)
# a label: a Sprite with a picture drawn on a 2D canvas
label = js.document.create_element("canvas")
label.width = 256
label.height = 64
pen = label.get_context("2d")
pen.fill_style = "white"
pen.font = "bold 40px sans-serif"
pen.text_align = "center"
pen.fill_text("400 cubes", 128, 46)
sign = THREE.Sprite(THREE.SpriteMaterial(map=THREE.CanvasTexture(label)))
sign.scale.set(2, 0.5, 1)
sign.position.y = 2.8
scene.add(sign)
def draw():
cubes.rotation.y += 0.005
renderer.render(scene, camera)
Moving and arranging
Every object has these:
| Python | What it does |
|---|---|
thing.position.set(x, y, z), thing.position.x = 2 | Where it is. y is up. |
thing.rotation.set(x, y, z), thing.rotation.y += 0.01 | How it is turned round each axis, in radians |
thing.scale.set(2, 1, 1), thing.scale.setScalar(2) | How big it is along each axis |
thing.lookAt(x, y, z) | Turns it to face a spot |
thing.add(other), thing.remove(other) | Puts other inside thing, so it moves with it (groups) |
thing.visible = False | Hides it |
thing.name = "door" | A name, handy when picking |
thing.castShadow, thing.receiveShadow | Whether it makes shadows and shows them |
To change many objects, keep them in a Python list and loop over it. Three.js's own traverse does not suit Python: functions you pass to the preview are called later, as events, not straight away.
Textures
A texture is a picture wrapped round a surface. Give it to a material as map=texture.
| Python | What it does |
|---|---|
THREE.TextureLoader().load(address) | Loads a picture from a web address. The site must allow other pages to use its pictures. |
THREE.CanvasTexture(a_canvas) | Uses a 2D canvas you drew on as the picture: text, patterns, anything from 2D functions |
texture.needsUpdate = True | After you draw on that canvas again, shows the change |
texture.wrapS = texture.wrapT = THREE.RepeatWrapping | Lets the picture repeat across and down (write it as two lines in Python) |
texture.repeat.set(4, 4) | How many times it repeats |
texture.colorSpace = THREE.SRGBColorSpace | Shows a photo's colours correctly |
texture.magFilter = THREE.NearestFilter | Keeps pixel-art textures blocky |
import math
renderer = THREE.WebGLRenderer(canvas=canvas, antialias=True)
renderer.setPixelRatio(pixel_ratio)
renderer.setSize(width, height, False)
scene = THREE.Scene()
scene.background = THREE.Color("#1a1a22")
scene.fog = THREE.Fog("#1a1a22", 6, 18)
camera = THREE.PerspectiveCamera(50, width / height, 0.1, 100)
camera.position.set(0, 2.5, 5)
camera.lookAt(0, 0.5, 0)
scene.add(THREE.HemisphereLight("white", "#334", 2.5))

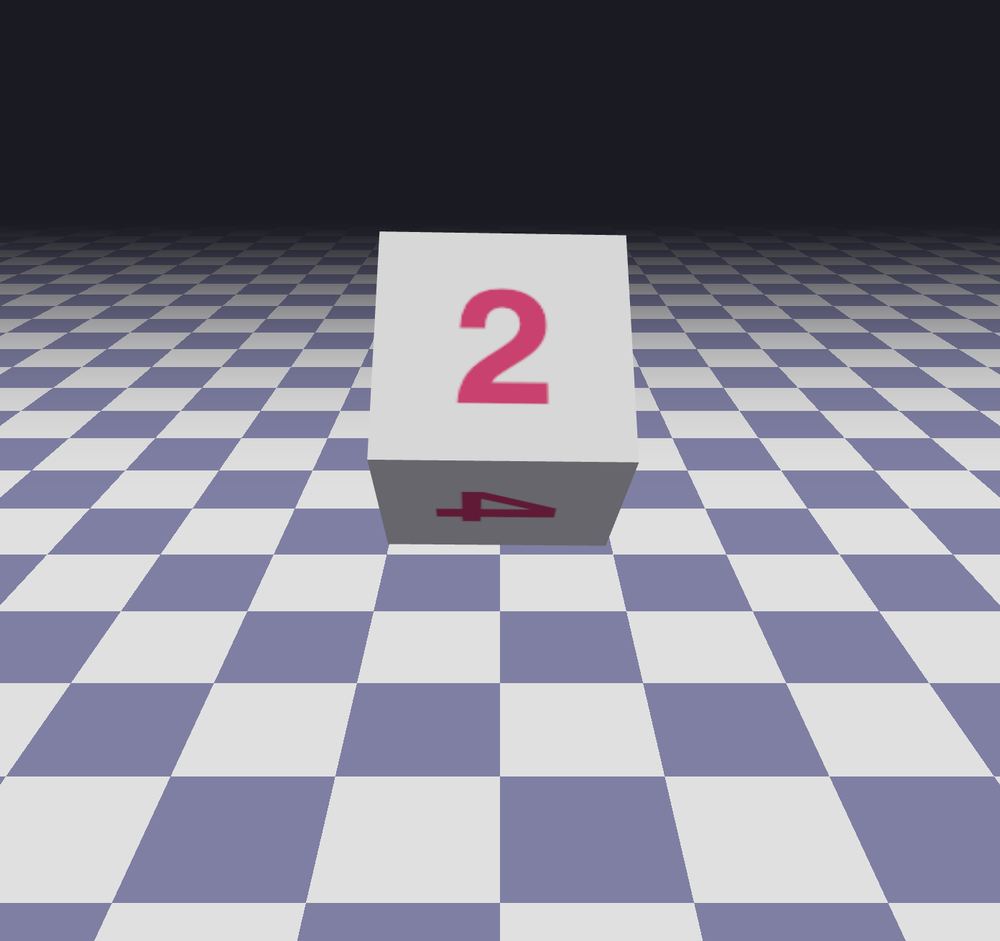

# draw a checkerboard on a small 2D canvas...
board = js.document.create_element("canvas")
board.width = 64
board.height = 64
pen = board.get_context("2d")
for row in range(8):
for col in range(8):
pen.fill_style = "#eee" if (row + col) % 2 == 0 else "#447"
pen.fill_rect(col * 8, row * 8, 8, 8)
# ...and use it as a repeating floor texture
floor_texture = THREE.CanvasTexture(board)
floor_texture.wrapS = THREE.RepeatWrapping
floor_texture.wrapT = THREE.RepeatWrapping
floor_texture.repeat.set(6, 6)
floor_texture.magFilter = THREE.NearestFilter
floor = THREE.Mesh(THREE.PlaneGeometry(30, 30), THREE.MeshStandardMaterial(map=floor_texture))
floor.rotation.x = -math.pi / 2
scene.add(floor)
# a die: one canvas per face
faces = []
for n in range(1, 7):
face = js.document.create_element("canvas")
face.width = 128
face.height = 128
p = face.get_context("2d")
p.fill_style = "white"
p.fill_rect(0, 0, 128, 128)
p.fill_style = "crimson"
p.font = "bold 90px sans-serif"
p.text_align = "center"
p.text_baseline = "middle"
p.fill_text(str(n), 64, 70)
faces.append(THREE.MeshStandardMaterial(map=THREE.CanvasTexture(face)))
die = THREE.Mesh(THREE.BoxGeometry(1.2, 1.2, 1.2), faces)
die.position.y = 0.9
scene.add(die)
def draw():
die.rotation.x += 0.007
die.rotation.y += 0.01
renderer.render(scene, camera)
A mesh given a list of six materials uses one per face of a box, as the die does.
Helpers
Lines that help you see what is going on while you build a scene. Remove them when you are done.
| Python | Shows |
|---|---|
THREE.GridHelper(size, divisions) | A grid on the floor |
THREE.AxesHelper(length) | The three axes: x red, y green, z blue |
THREE.DirectionalLightHelper(light, size) | Where a directional light is and which way it points |
THREE.PointLightHelper(light, size) | Where a point light is |
THREE.SpotLightHelper(light) | A spot light's cone |
THREE.HemisphereLightHelper(light, size) | A hemisphere light |
THREE.CameraHelper(light.shadow.camera) | The box a light's shadows cover |
THREE.BoxHelper(thing, "yellow") | A box round an object |
Maths
| Python | What it is |
|---|---|
THREE.Vector3(x, y, z) | A position or direction in 3D. .set, .add(v), .multiplyScalar(n), .normalize(), .lerp(v, t) |
THREE.Vector2(x, y) | The same in 2D |
THREE.Color(…) | A colour (Colours) |
THREE.Euler(x, y, z) | A turn round each axis, in radians: what rotation is |
THREE.Quaternion() | Another way to store a turn, which never gets stuck. thing.quaternion.setFromAxisAngle(THREE.Vector3(0, 1, 0), angle) |
THREE.Matrix4() | Position, turn and size in one; used by InstancedMesh. .setPosition(x, y, z), .makeRotationY(a), .compose(position, quaternion, scale) |
THREE.MathUtils.degToRad(90) | Degrees to radians; in Python, math.radians(90) does the same and needs no answer back |
Time: use the dt that update(dt) is given, rather than a three.js clock.
Most maths is easiest in plain Python: keep positions as Python numbers, work them out with math, and set the results with position.set(...).
Picking and controls
Picking finds what is under a point on the screen:
| Python | What it does |
|---|---|
ray = THREE.Raycaster() | Makes a picker |
ray.setFromCamera(THREE.Vector2(x, y), camera) | Aims it through a point, where x and y run from -1 to 1 across and up the preview: x = event.x / width * 2 - 1, y = -(event.y / height) * 2 + 1 |
hits = ray.intersectObjects(list_of_things) | What it hits, nearest first. await hits.length says how many; hits[0].object is the nearest thing, hits[0].point where. |
A full example is in 3D scenes: picking.
Orbit controls let you turn the camera by dragging:
| Python | What it does |
|---|---|
controls = addons.OrbitControls(camera, canvas) | Drag to orbit, pinch or scroll to zoom, two fingers or right-drag to pan |
controls.update() | Call every frame in draw() |
controls.target.set(x, y, z) | The point it orbits round |
controls.enableDamping = True | Glides to a stop when you let go |
controls.autoRotate = True, controls.autoRotateSpeed = 2 | Turns slowly by itself |
controls.minDistance = 2, controls.maxDistance = 20 | How close and how far you can zoom |
controls.maxPolarAngle = math.pi / 2 | Stops the camera going below the floor |
controls.enableZoom, controls.enablePan, controls.enableRotate | Switch each gesture on or off |
Related
- 3D scenes: the ideas, with examples
- Tutorial: lighting a scene
- Colours
- 2D functions
- GPU: WebGL and WebGPU
- three.js documentation
