Pyctures
Python 2D and 3D graphics, in the browser

Change the code and press Run (or Cmd/Ctrl+Enter). Python runs in your browser; the first run loads it, which takes a few seconds.

Run it with your own Python

Save a scene as hello.py. draw() is called every frame, ctx is the 2D drawing surface, and width and height are the size of the canvas. There is nothing to import.

import math

def draw():
    ctx.fill_style = "midnightblue"
    ctx.fill_rect(0, 0, width, height)
    for i in range(12):
        ctx.fill_style = f"hsl({i * 30}, 80%, 60%)"
        ctx.begin_path()
        ctx.arc(width / 2 + 120 * math.cos(i / 1.91), height / 2 + 120 * math.sin(i / 1.91), 20, 0, math.tau)
        ctx.fill()

pyctures run hello.py

pyctures build hello.py -o hello.html

run uses your own Python, so numpy and anything else you have installed works; save the file and the scene runs again. build makes a folder or a single page that runs Python in the browser, so it can go on any static host or in an email.

The same names as JavaScript

The calls are the web's 2D canvas and three.js calls, so any JavaScript graphics example comes across with a few small changes.

const cube = new THREE.Mesh(new THREE.BoxGeometry(1, 1, 1),
                            new THREE.MeshStandardMaterial({ color: 0x44aaff }));
scene.add(cube);
function animate() {
  cube.rotation.y += 0.01;
  renderer.render(scene, camera);
  requestAnimationFrame(animate);
}
animate();

cube = THREE.Mesh(THREE.BoxGeometry(1, 1, 1),
                  THREE.MeshStandardMaterial(color=0x44aaff))
scene.add(cube)

def draw():
    cube.rotation.y += 0.01
    renderer.render(scene, camera)

The full guide: bringing a JavaScript example across.

Put scenes on your website

Each scene is a <div> naming a Python file. It fills its box, starts when it scrolls into view and pauses when it leaves. Python runs in a background thread, so a slow frame cannot hold up the page. The browser half is on npm as pyctures.

<div data-pyctures-src="balls.py"></div>
<div data-pyctures-src="knot.py" style="height: 420px"></div>
<script type="module" src="pyctures/pyctures.js"></script>

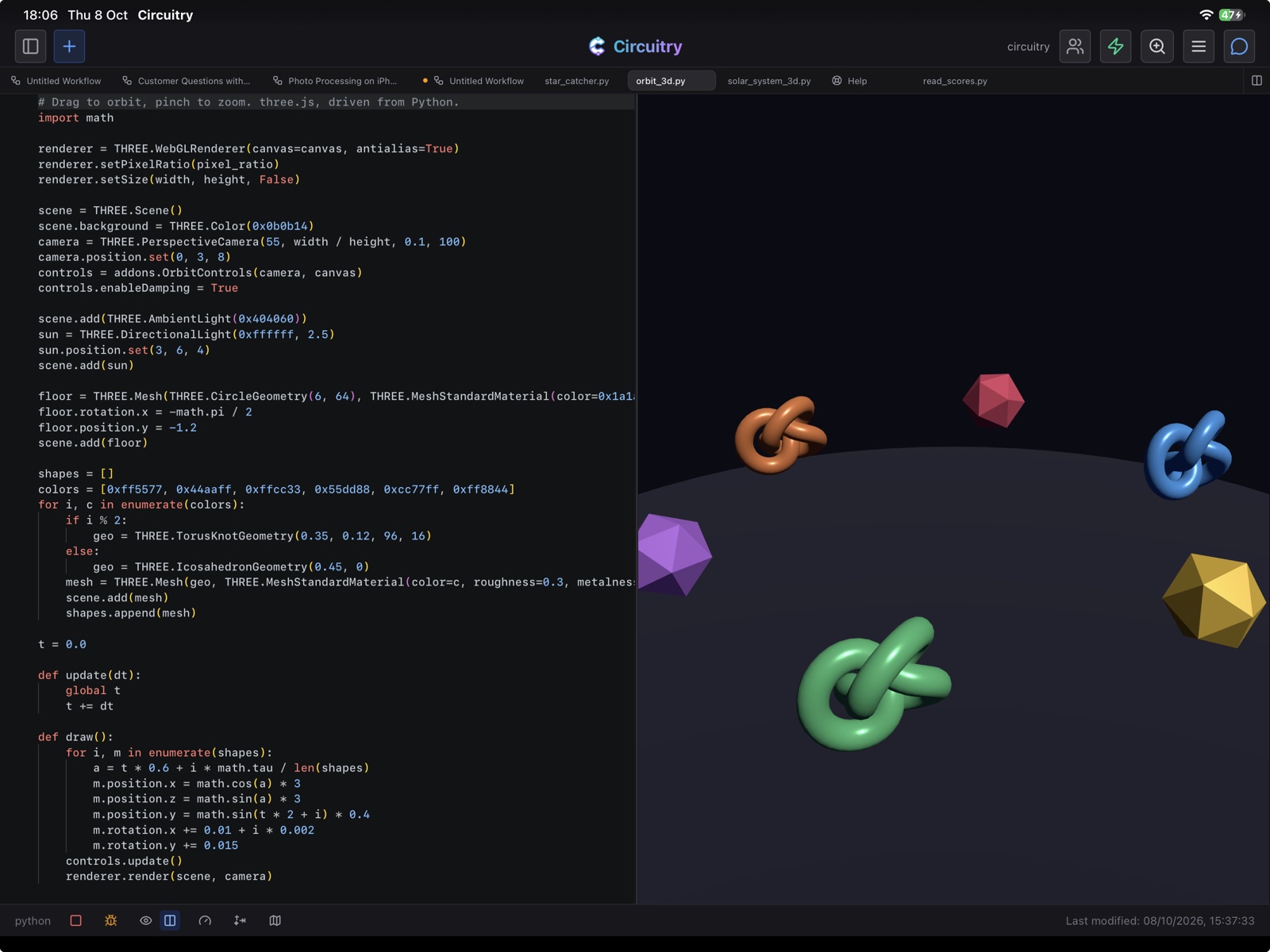

Built into Circuitry

In Circuitry's code editor a Python file shows its picture in a preview beside the code. Ask for a game or a 3D scene and a ready-made file opens and starts running. File → Export as Web Page saves a scene as one page that runs in any browser.

Open a scene in Circuitry

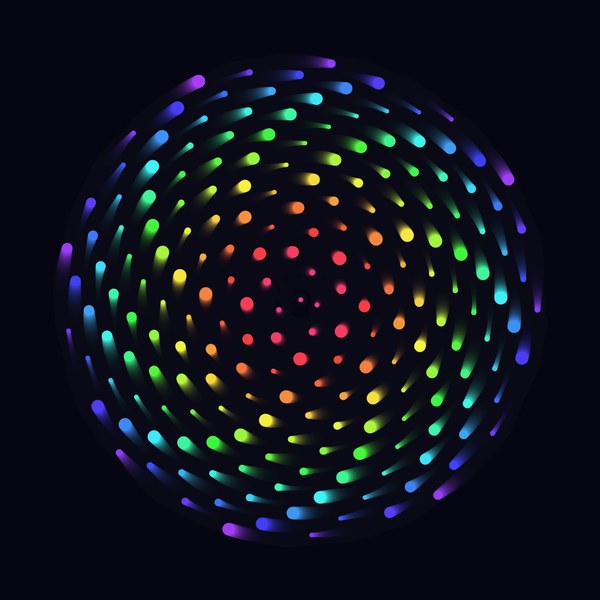

Spiral Garden

2D · Python

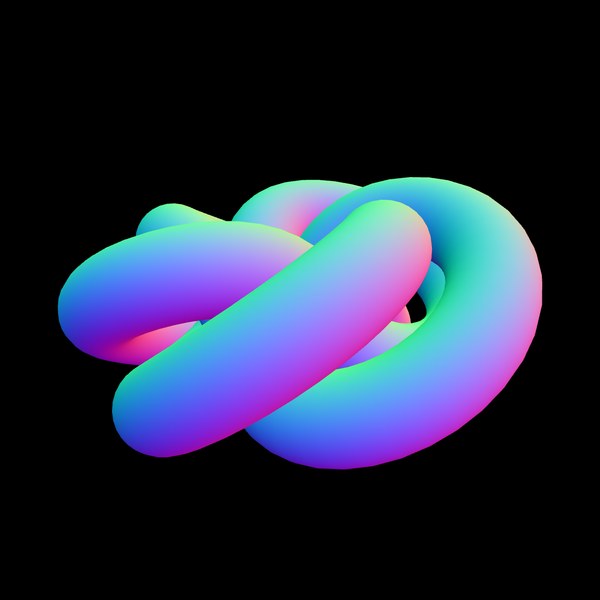

Torus Knot

3D · Python

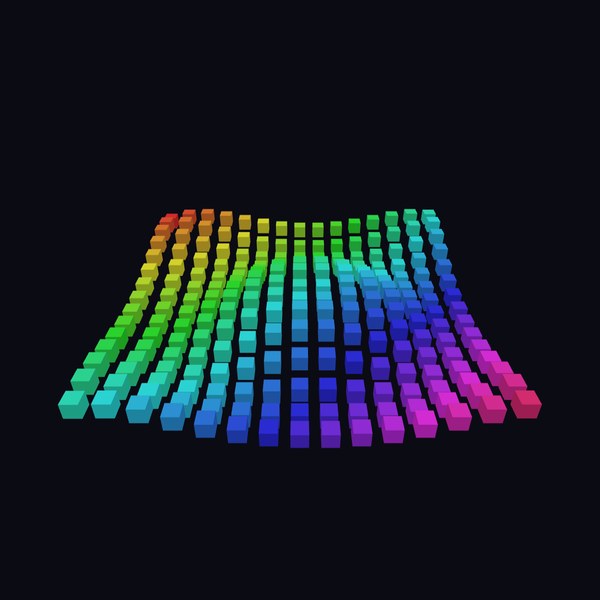

Wave Grid

3D · Python

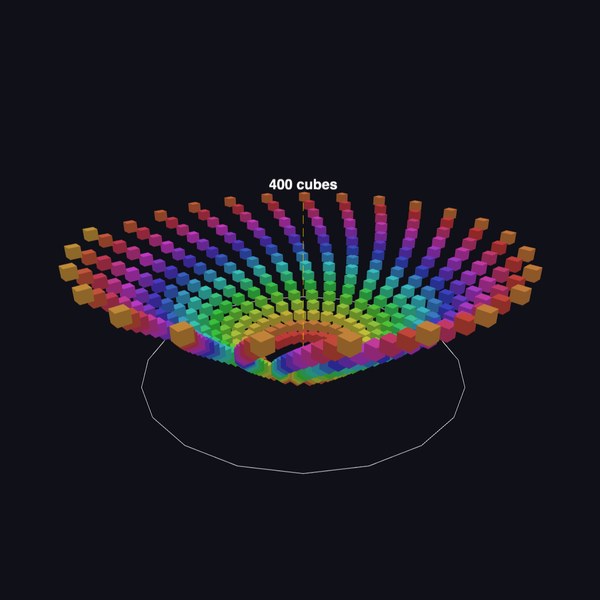

Cube Spiral

3D · Python

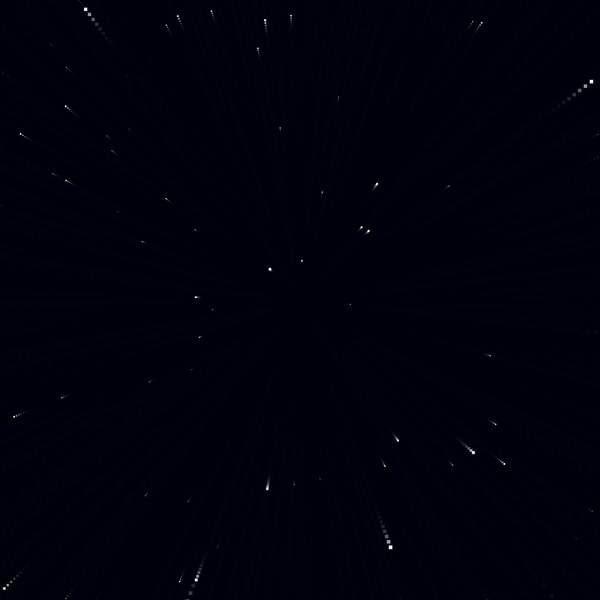

Starfield

2D · Python

More scenes, each with its code: the Pyctures gallery.
